(Workshop / Man Cave)
Slabs Poured January 19, 2010
Framing Started January 29, 2010
Final Inspection May 10, 2010
 |
|
Barn with Cupola and Wind Vane June 8, 2010 |
|---|
 |
|
Workshop Sketch |
|---|
Click Thumbnail for Larger Image
 Area Grubbed for Workshop Area |
 Area Grubbed for Workshop Area |
 Workshop and Greenhouse Grubbed and Staked |
 Ground Breaking on Barn/Workshop 6/24/09 |
 Fence Structure Around Second Water Tank |
 Workshop Slab Formed January 13, 2010 |
 Workshop Slab Poured January 19, 2010 |
 Barn Workshop Framing February 1, 2010 |
 Barn Raising February 1, 2010 |
 Third Wall Up February 1, 2010 |
 Greenhouse Framing February 1, 2010 |
 Fourth Wall Up Floor Joists Started |
 Center Beam Up Floor Joists Started |
 Center Beam Up Floor Joists Started |
 Center Beam and Lally Column |
 Second Floor Sheeted and View |
 Barn as Seen from Next Street Over |
 Barn as Seen from Next Street Over |
 Rafters Up Back Side of Barn |
 Second Floor of Barn Hole is for Dormer |
 Dormer Up and Roof Sheeted February 8, 2010 |
 Barn Roof Sheeted February 8, 2010 |
 Barn Dormer from Inside February 8, 2010 |
 Barn Dormer from Upstairs February 8, 2010 |
 Barn Roof Sheeted Ridge Beam Not Trimmed Yet |
 Windows and Siding Being Installed |
 Greenhouse / Lath House Framed |
 Barn Stairs Installed |
 Barn Upstairs and Dormer |
 Barn Upstairs and Stairwell |
 Barn with Siding Installed and Scaffolding Still Up |
 Barn Dormer on Second Floor and Balcony |
 Barn Loft Door and Window |
 Barn Loft Door and Window |
 Barn Loft Upstairs with French Doors Installed |
 Greenhouse Viewed from Barn |
 24-inch Deep Trench Dug to Barn for Electrical Power |
 Cupola Installed on Barn Roof |
 First Workbench with Compound Miter Saw |
 Concrete Poured Behind Workshop |
 Concrete Poured Around Workshop |
 Balcony Railing Installed in Barn |
 Primer Color on Barn not so bueno |
 First Coat on Barn Wet and Red |
 Second Tank Fence Repainted March 26, 2010 |
 Barn Standing Seam Roofing Installation |
 Greenhouse Interior with Benches |
 Painting Greenhouse Interior Trim |
 Table Saw and Electrical Rough In |
 Barn Upstairs and Electrical Rough In |
 Balcony Railing and Greenhouse Roof |
 Greenhouse Roof Viewed from Balcony |
 Electrical Panel in Barn |
 Water Pump for Second Water Tank |
 Greenhouse and Solar Panel on Pump Shed |
 Barn with Metal Roofing Installation |
 House and Barn with Greenhouse |
 Barn and Greenhouse from Other Street |
 House and Barn with Driveway |
 Greenhouse Interior with Redwood Benches |
 Greenhouse Interior with Redwood Benches |
 Greenhouse with Stairs Under Construction |
 Stairs Down to Greenhouse |
 Painting Barn April 5, 2010 |
 Barn Dormer and Balcony |
 Barn Balcony with Decking |
 Barn Loft Door and Block and Tackle |
 Greenhouse Interior with First Plants |
 Greenhouse Interior with First Plants |
 Greenhouse Interior with First Plants |
 Plywood on Walls Downstairs |
 Plywood on Walls Upstairs |
 Barn Balcony with Decking |
 Greenhouse Interior with Lettuce |
 Carved Stone Buddha in Greenhouse |
 Barn Viewed from Hill Above May 10, 2010 |
 Barn with Front Doors Open |
 Greenhouse with Plants May 10, 2010 |
 Greenhouse with All Eight Windows Open |
 Easter Island Dudes in Greenhouse |
 Koi Banner in Greenhouse |
 Bud Vases and Thermometer in Greenhouse |
 Lotsa Lettuce in Greenhouse |
 Backside of Barn May 10, 2010 |
 Upstairs Vanity and Mirror in Barn |
 Water Heater Being Installed Under Downstairs Sink |
 Large Sink in Greenhouse |
 Catchment Water to Second Water Tank |
 House and Barn at Night May 11, 2010 |
 Barn at Night May 11, 2010 |
 Common Barn Wall Inside Greenhouse |
 Old Working Rockwell Parking Meter in Front of Barn |
 Front Half of Barn June 2, 2010 |
 Cabinets Installed in Barn |
 Old Church Bell Installed in Cupola |
 Old Lahaina Scrimshaw Sign in Barn |
 Brass and Copper Wind Vane On Cupola |
 John Taking a Break After Installing Wind Vane |
 Gutter Catchment in Back of Barn |
 Gutter Catchment in Back of Barn |
 Sink and Stereo Downstairs in Barn |
 Wall Mounted Air Compressor in Barn |
 Epoxy Coating Barn Floor |
 Epoxy Coating Barn Floor |
 Epoxy Coating on Barn Floor |
 Epoxy Coating on Barn Floor |
 Epoxy Coating on Barn Floor |
Barn with Cupola and Wind Vane |
 Barn Floor with Epoxy Clear Coat |
 Rolling Waterproof Membrane on Upstairs Floor |
 Epoxy Flakes Around Perimeter of Downstairs Floor |
 Epoxy Flakes Around Perimeter of Downstairs Floor |
 Travis Applying Epoxy Flakes to Stair Faces |
 Travis Applying Epoxy Flakes Upstairs |
 Completed Epoxy Floor Upstairs |
 Completed Epoxy Floor Downstairs |
 Moving Elliptical Trainer Upstairs |
 Moving Elliptical Trainer Upstairs |
 Moving Elliptical Trainer Upstairs |
 Moving Elliptical Trainer Upstairs |
 Moving Elliptical Trainer Upstairs |
 Elliptical Trainer Moved Upstairs |
 Compressed Air Plumbing and Hose Reel |
 Electric Hoist Downstairs |
 Potting Area in Greenhouse |
 Sink, Potting Area, and Seed Starting Area |
 Seed Starting Area in Greenhouse |
 Waterbed Heater for Germinating Seeds |
 Thermostatically Controlled Waterbed Heater |
 Barn Viewed From Street |
 Stainless Steel Workbench in Barn |
 Tool Chest and Small Lathe in Barn |
 Downstairs Workshop in Barn |
 Downstairs Workshop in Barn |
 Downstairs Workshop in Barn |
 Wireless Bridge for Internet in Barn |
 Ten 210W Solar Panels on Barn Dormer Roof |
 Grid-Tie Inverter Disconnect on Barn |
 Sunny Boy 3000W Grid-Tie Inverter and Solar Disconnect |
 Grid-Tie Inverter Inside Barn |
 2427 Watts Generated (Over Rated Power) |
 Solar Panels on Barn Dormer |
 Barn Viewed from Street November 3, 2010 |
Click Thumbnail to Watch Video
Need a DivX Player?
 Workshop Location & Koa |
 Area Grubbed for Workshop |
 Workshop Staking |
 Workshop Staking from Front |
 Workshop Staking from Above |
 Workshop Staking from Back |
 Workshop Ground Breaking |
 Troweling Workshop Slab |
 Barn Walkthrough 2/10/10 |
 Completed Barn 7/7/10 |
 Greenhouse Walkthrough 7/7/10 |
 Meter Running Backward |
Need a DivX Player?
Click Thumbnail to Watch Video
 |
|
Where Workshop Goes |
|---|
 |
|
Preliminary Cad Rendering of Workshop and Greenhouse |
|---|
 |
|
Preliminary Cad Rendering of Workshop and Greenhouse |
|---|
 |
|
Preliminary Cad Rendering of Workshop and Greenhouse |
|---|
 |
|
Preliminary Cad Rendering of Workshop |
|---|
 |
|

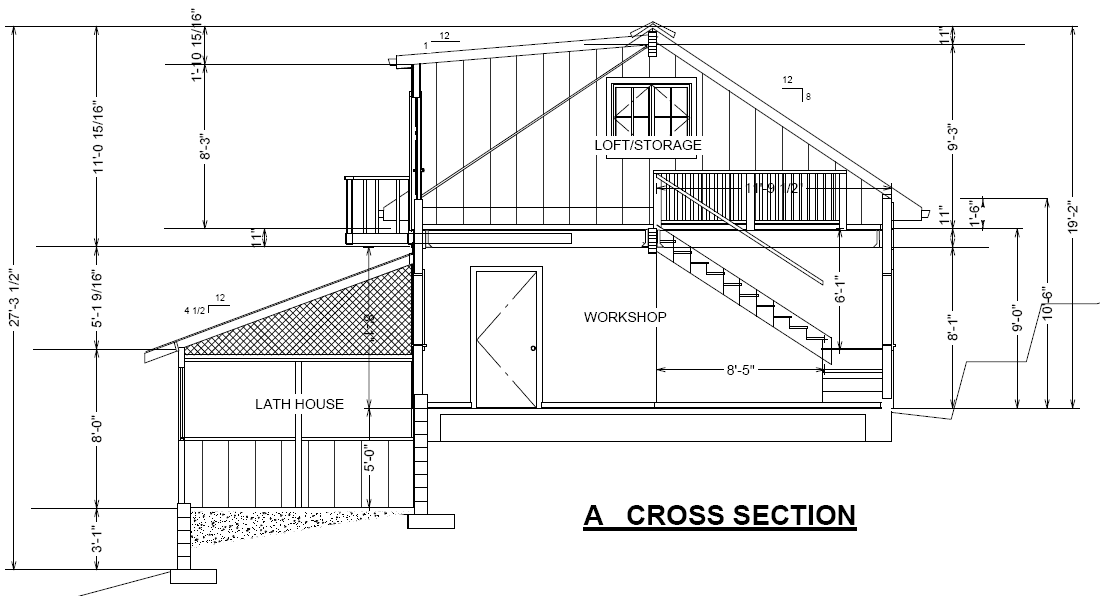

Preliminary Cross Section of Workshop |
|---|
[Workshop Plans]
 |
|
Topographic Map with Workshop Each Contour Line is Five Feet |
|---|
 |
|
Topographic Map with Workshop Each Contour Line is Two Feet |
|---|
 |
|

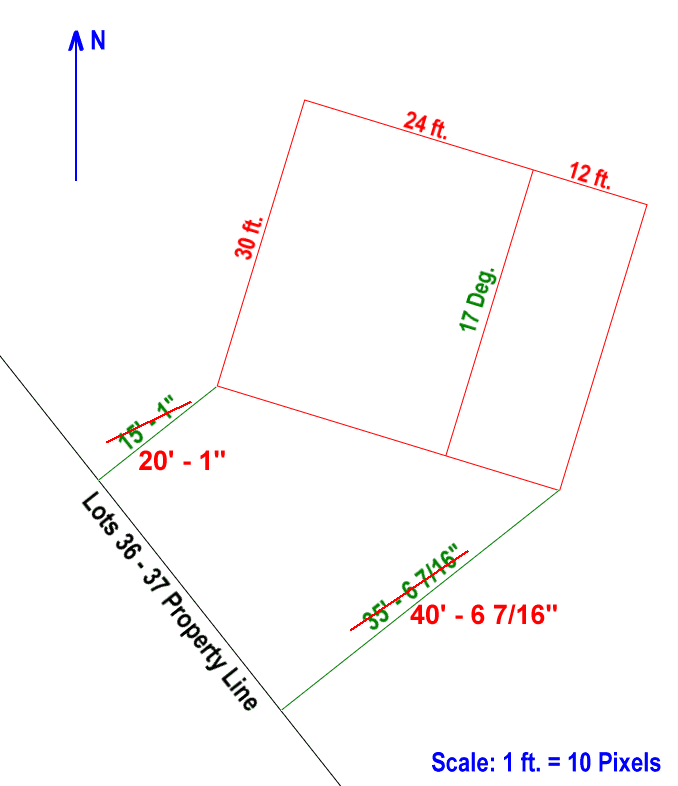

Location of Workshop |
|---|
 |
|
Workshop and 6000 Gallon Water Tank |
|---|
 |
|

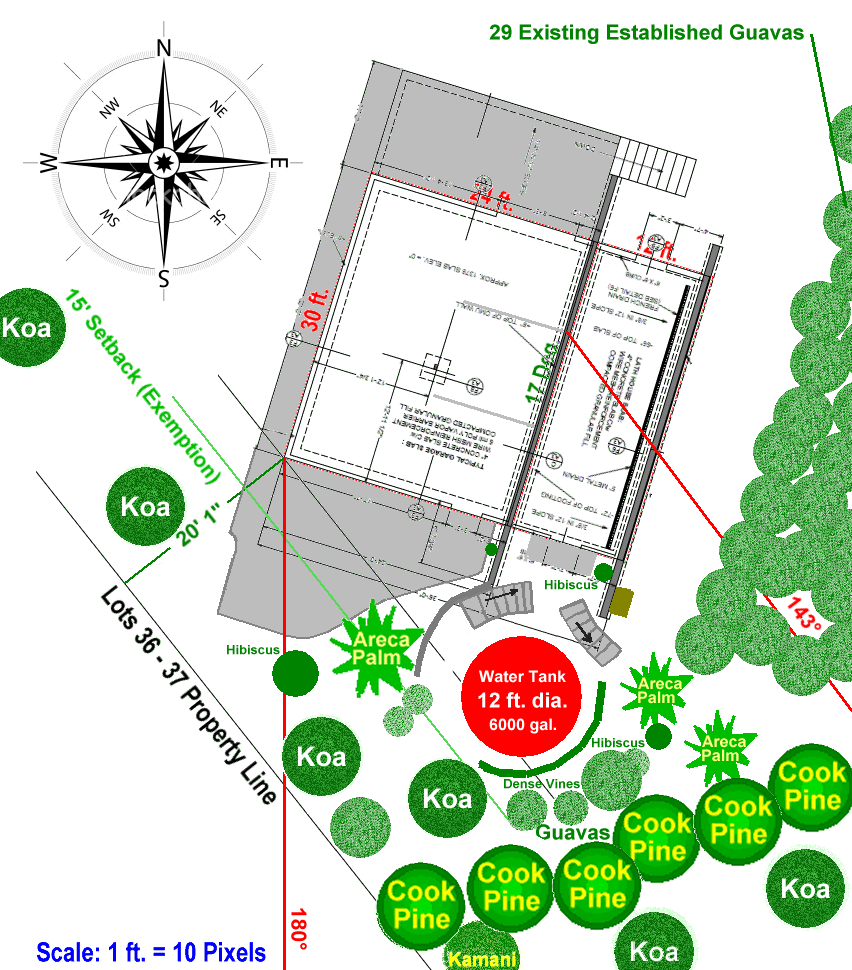

Barn / Workshop Landscaping |
|---|
[Elevation Spreadsheet]
 |
|

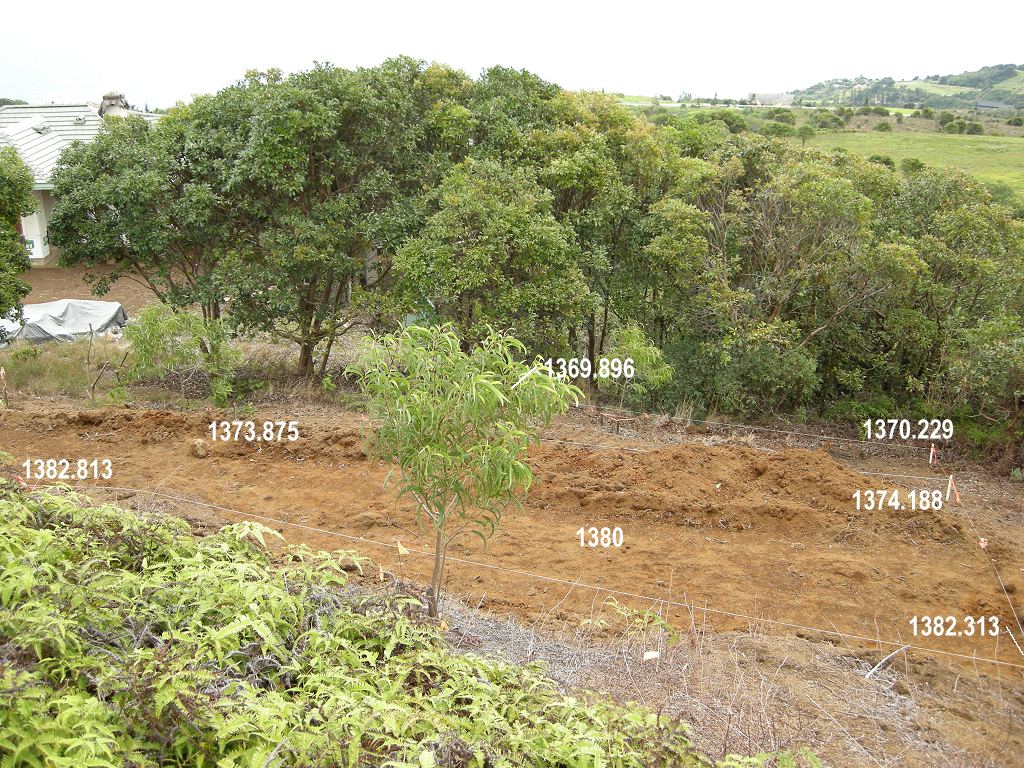

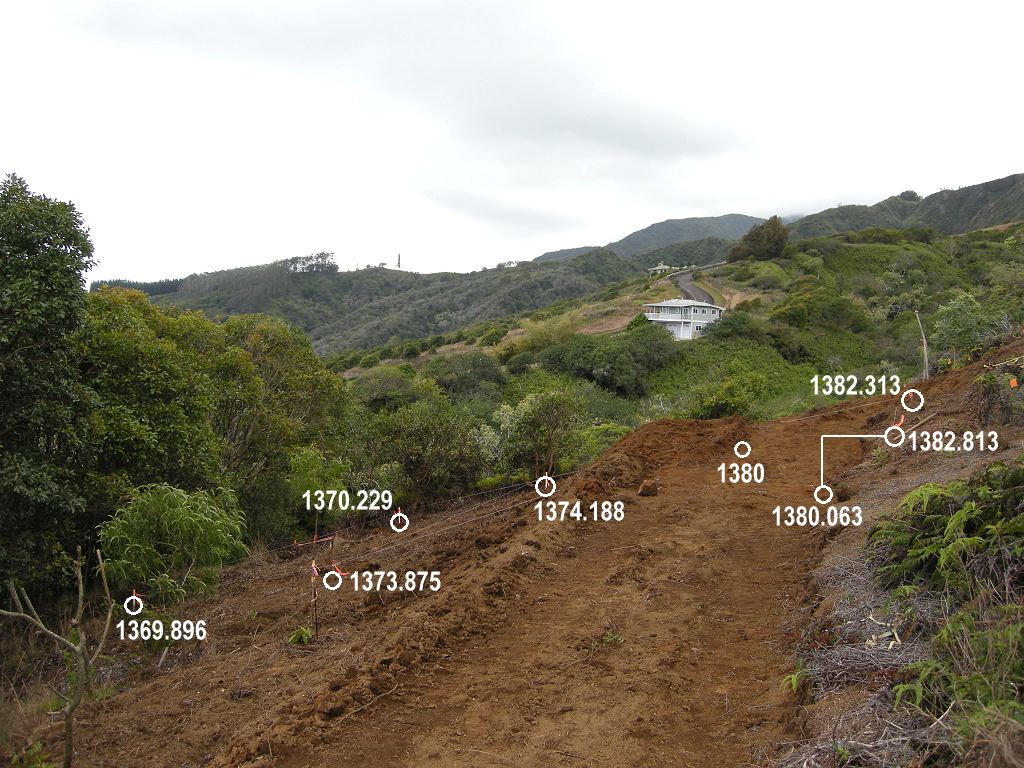

Elevation Data for Workshop Site |
|---|
 |
|
Elevation Data for Workshop Site |
|---|
 |
|

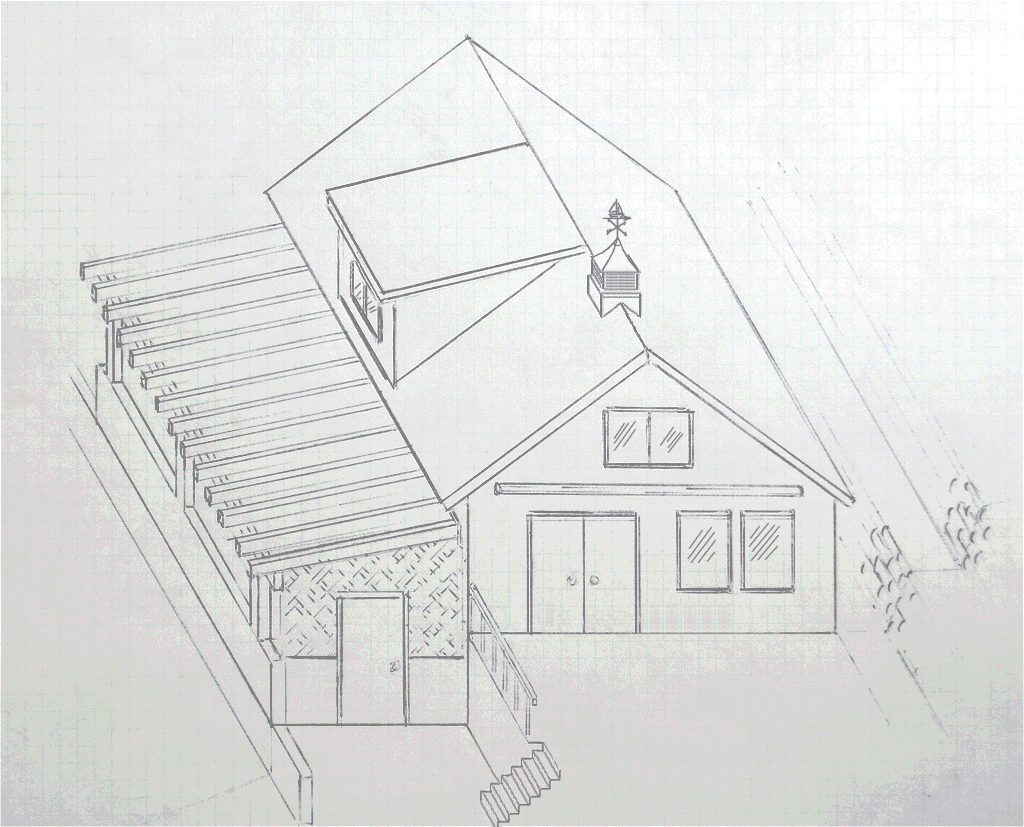

Workshop Sketch |
|---|
 |
|

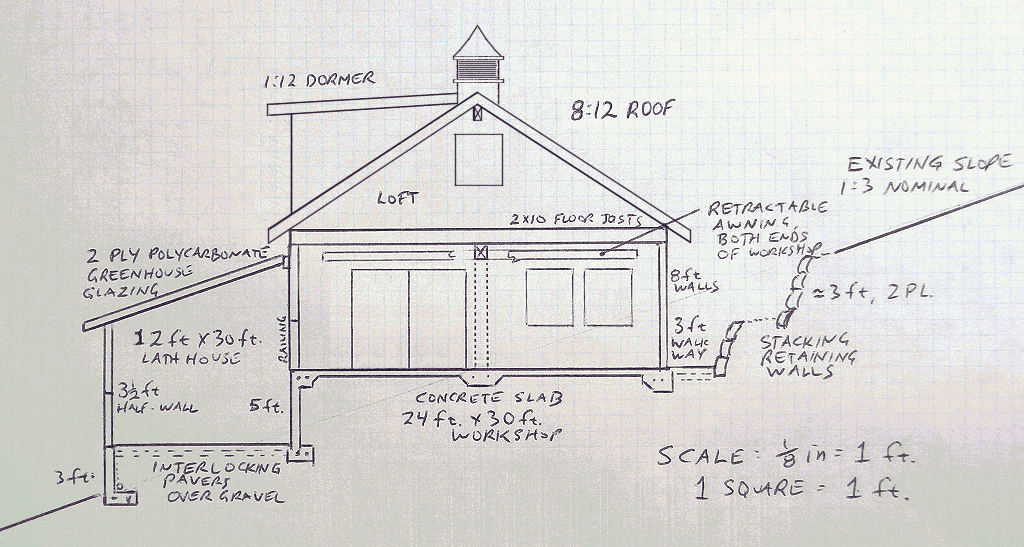

Workshop Elevation Sketch |
|---|
 |
|
Workshop Sketch |
|---|
 |
|

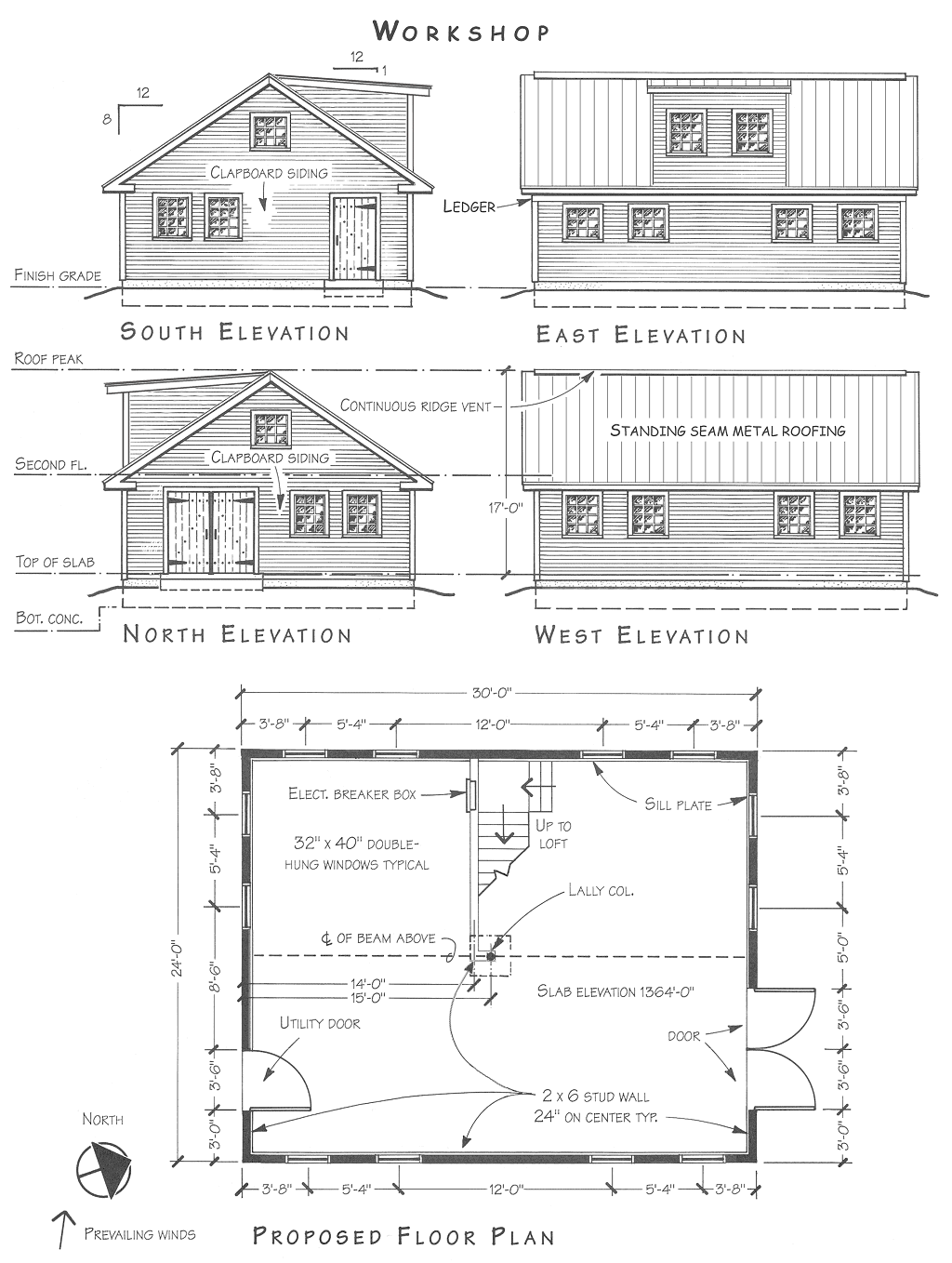

Workshop Elevations and Floorplan |
|---|
Click the Book Cover for More Information
 |
|

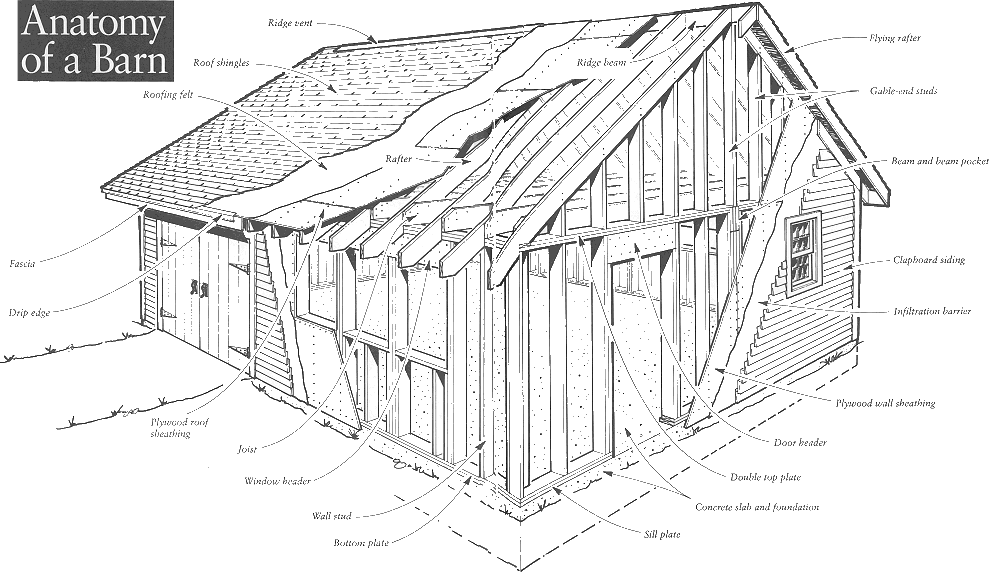

Anatomy of a 24 ft. x 30 ft. Barn |
|---|
 |
|

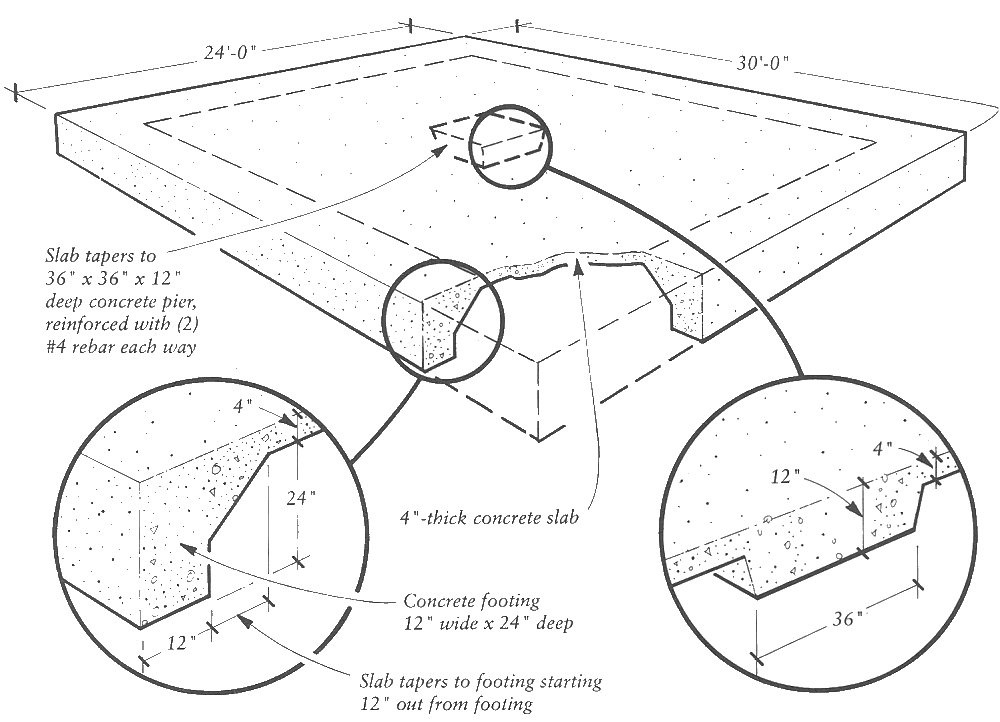

Workshop Foundation |
|---|
 |
|

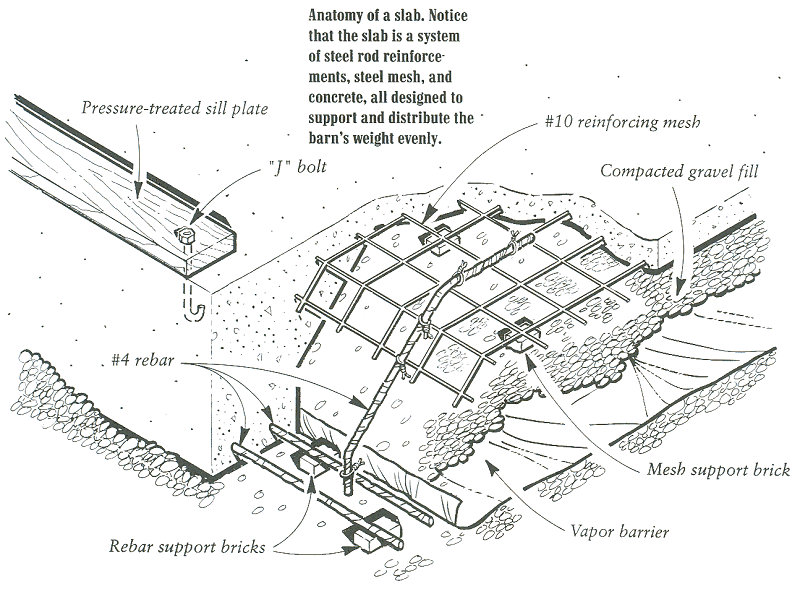

Anatomy of a Slab |
|---|
 |
|

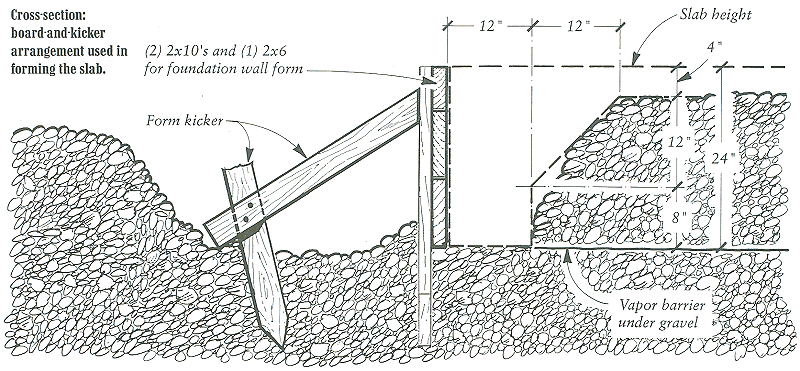

Workshop Foundation Cross Section |
|---|
 |
|

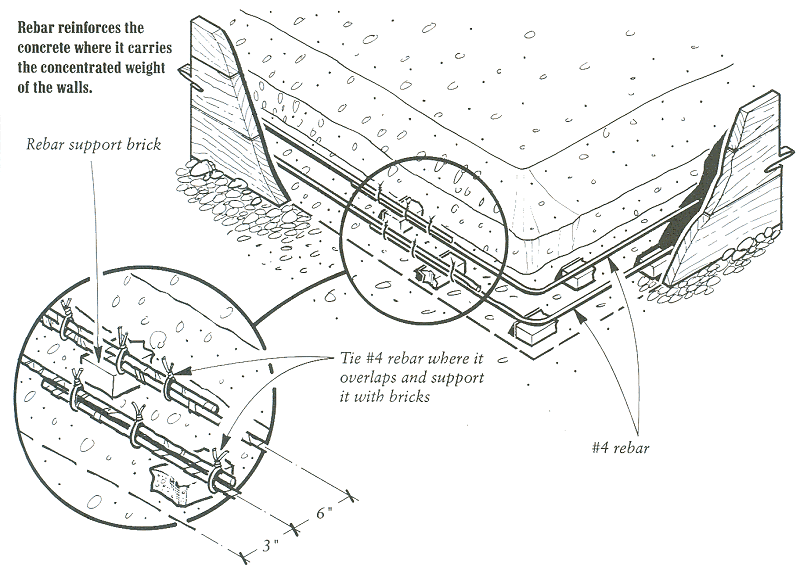

Rebar Detail for Foundation |
|---|
 |
|

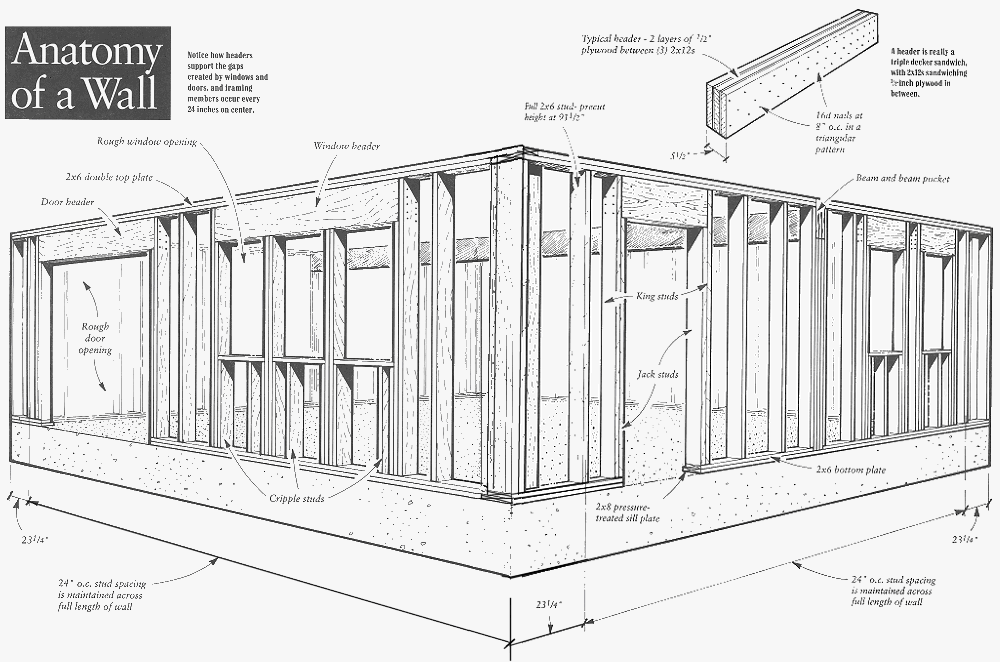

Anatomy of a Wall |
|---|
 |
|

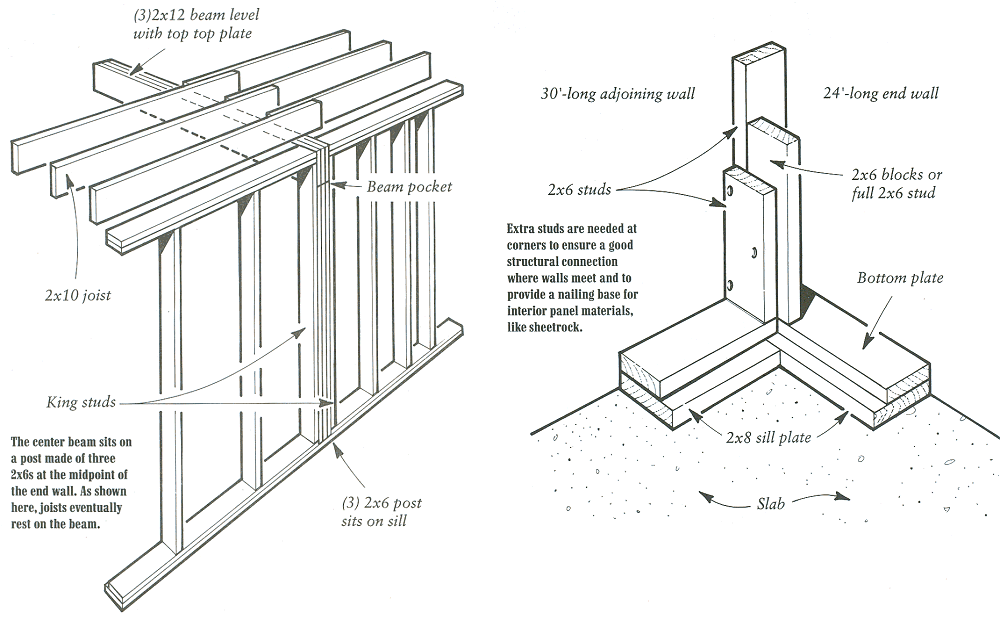

Workshop Wall Details |
|---|
 |
|

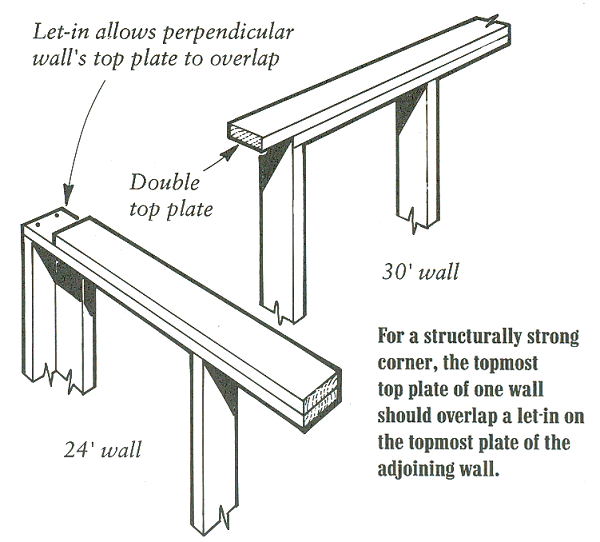

Overlap on Wall Plate |
|---|
 |
|

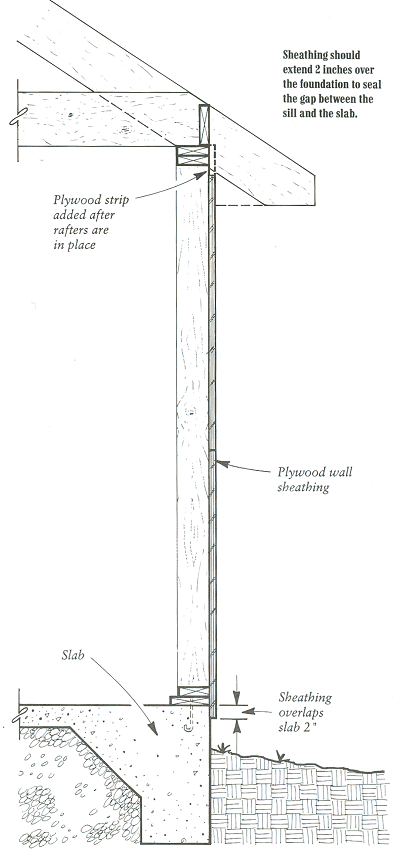

Workshop Sheathing |
|---|
 |
|

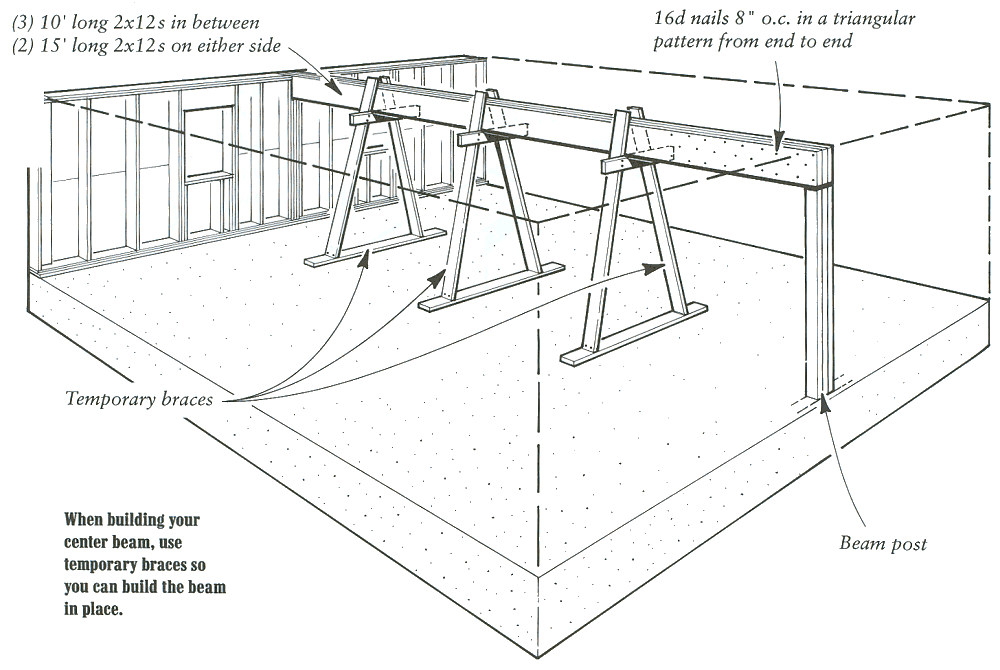

Workshop Center Beam |
|---|
 |
|

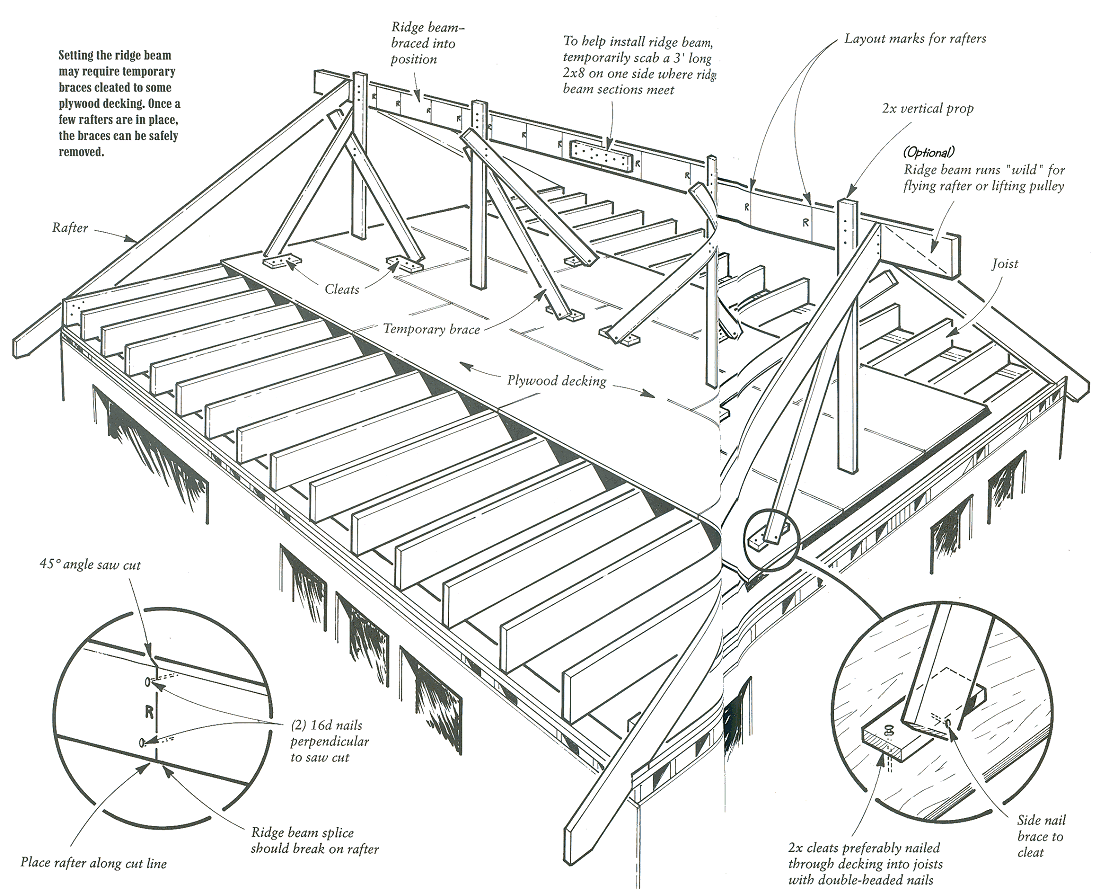

Setting the Center Ridge Beam |
|---|
 |
|

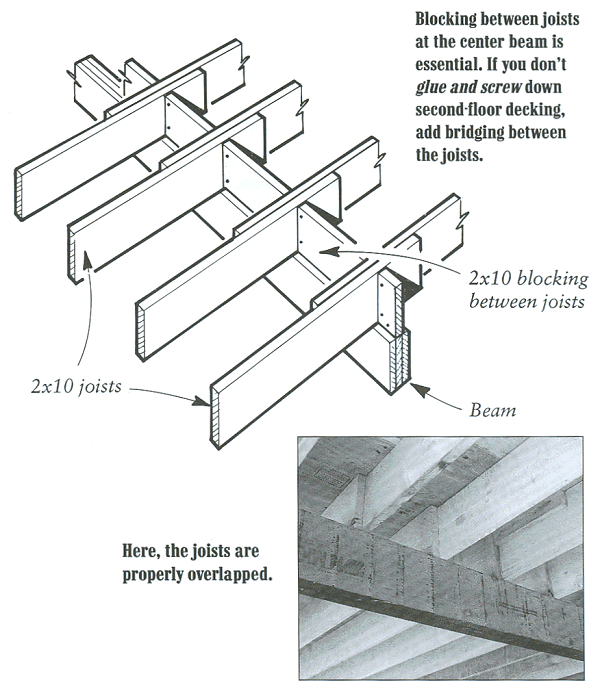

Workshop Floor Joists |
|---|
 |
|

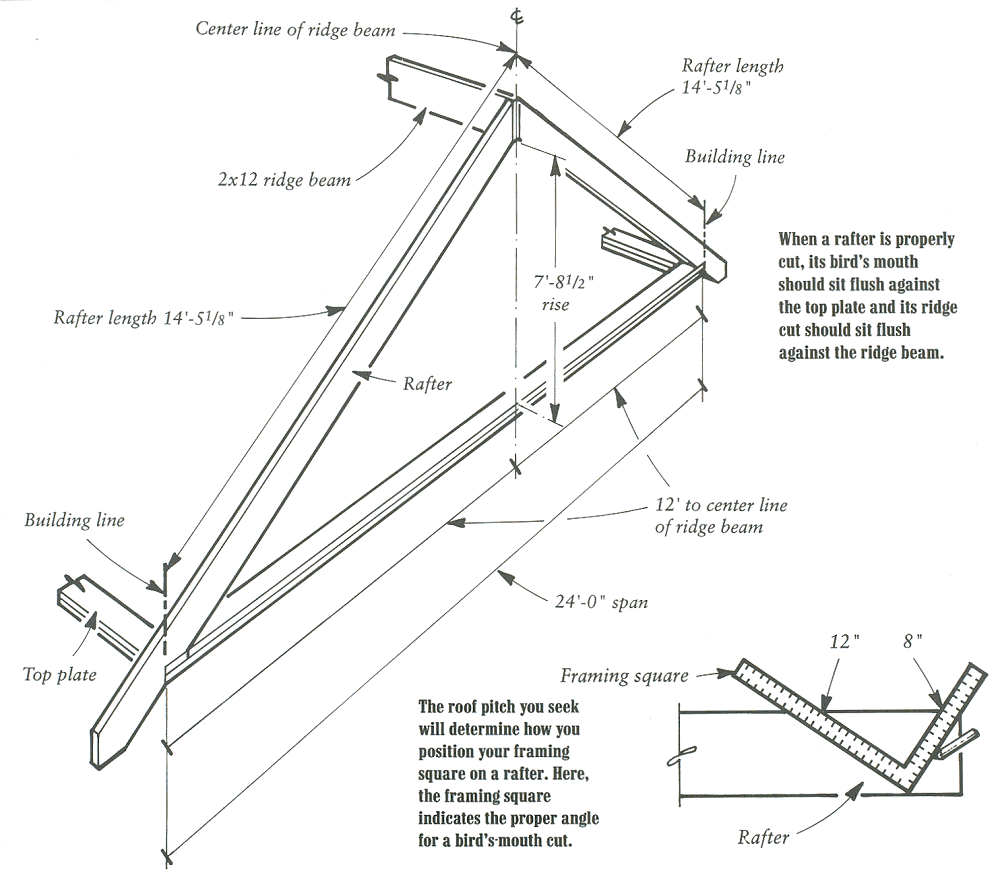

Workshop Roof Pitch |
|---|
 |
|

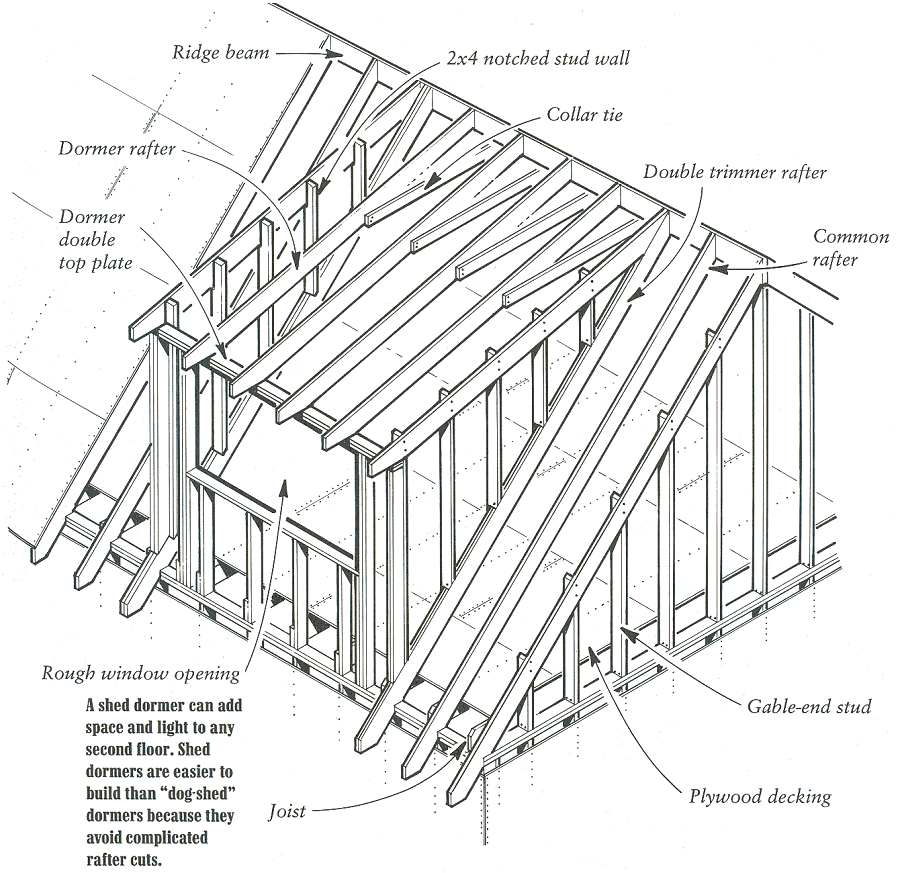

Workshop Dormer Roof |
|---|
 |
|

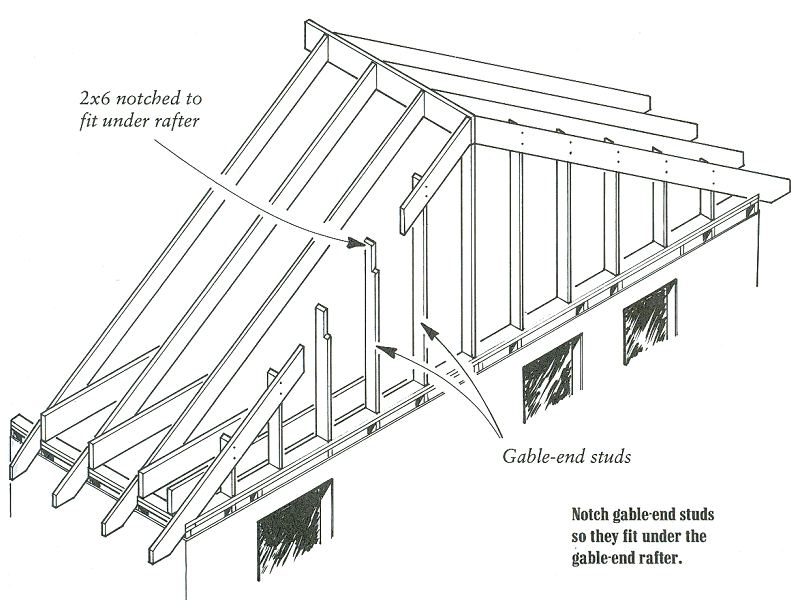

Workshop Gable End Studs |
|---|
 |
|

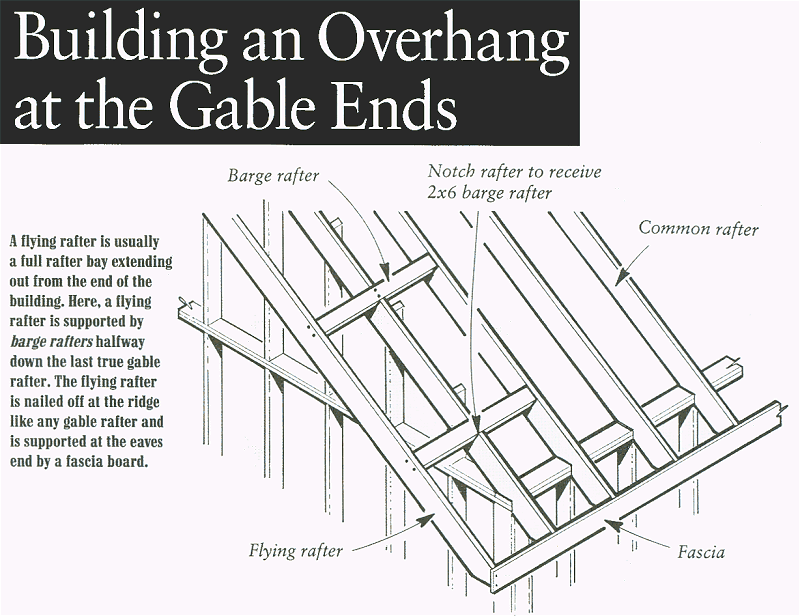

Workshop Gable Overhang |
|---|
 |
|

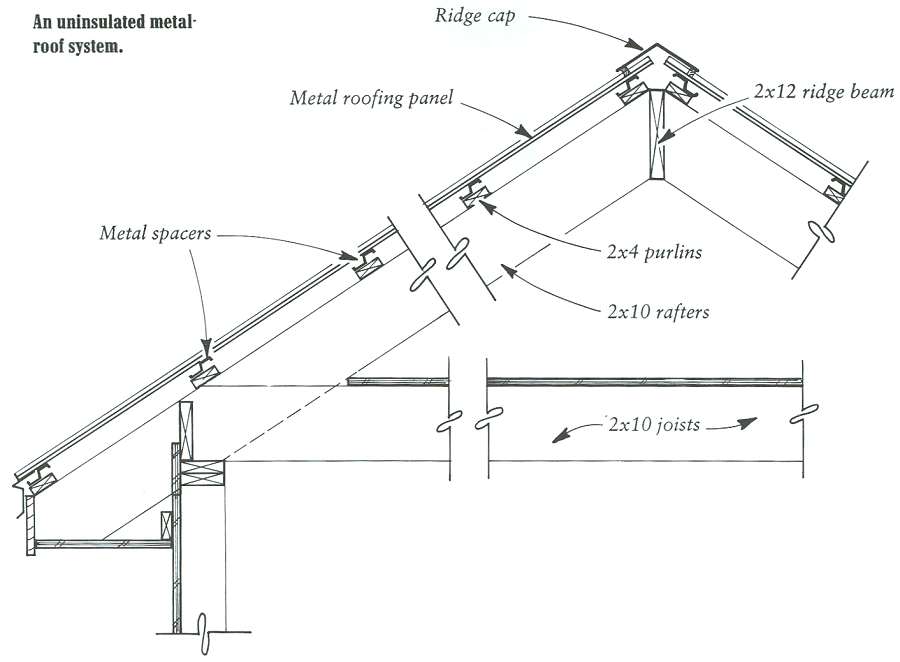

Workshop Uninsulated Metal Roof |
|---|
 |
|

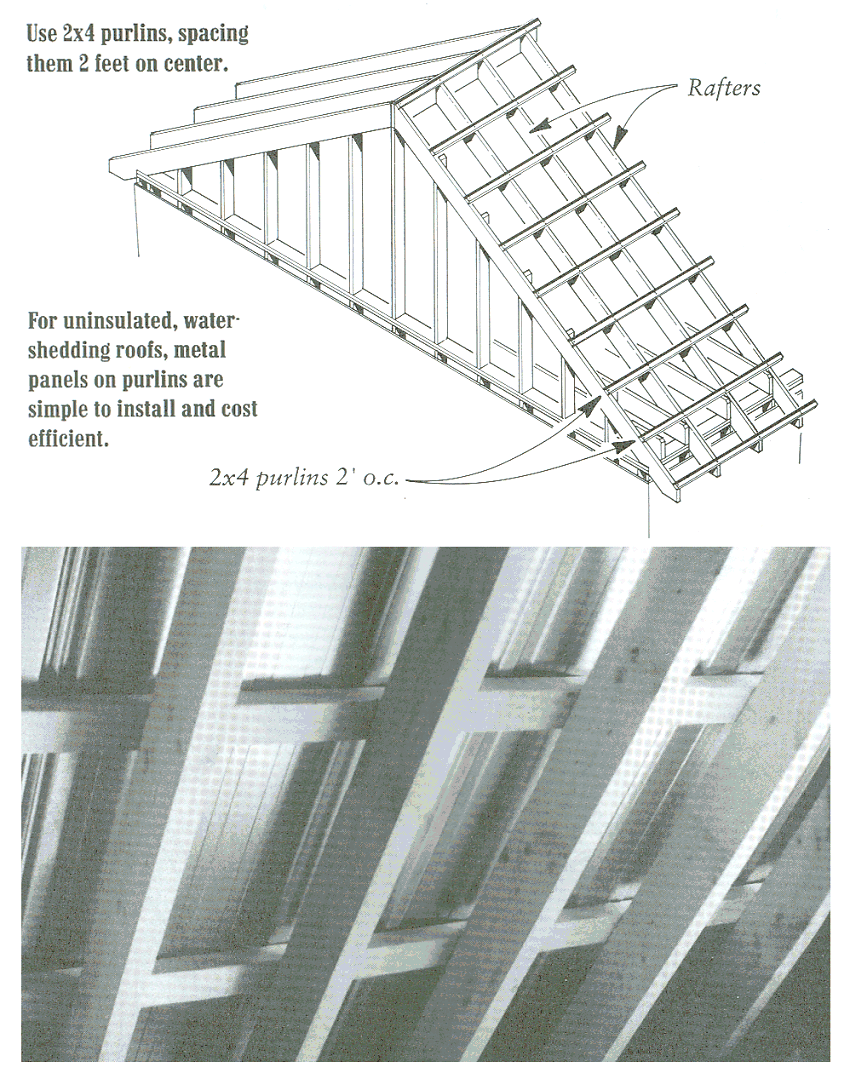

Purlins for Uninsulated Metal Roof |
|---|
 |
|

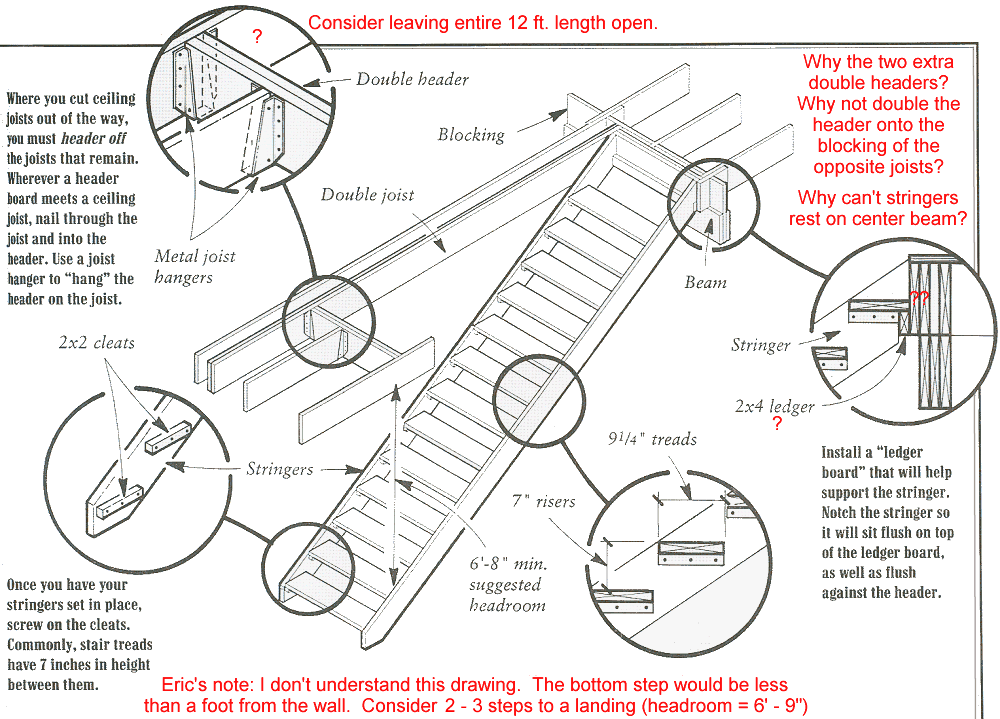

Workshop Stairs |
|---|
 |
|

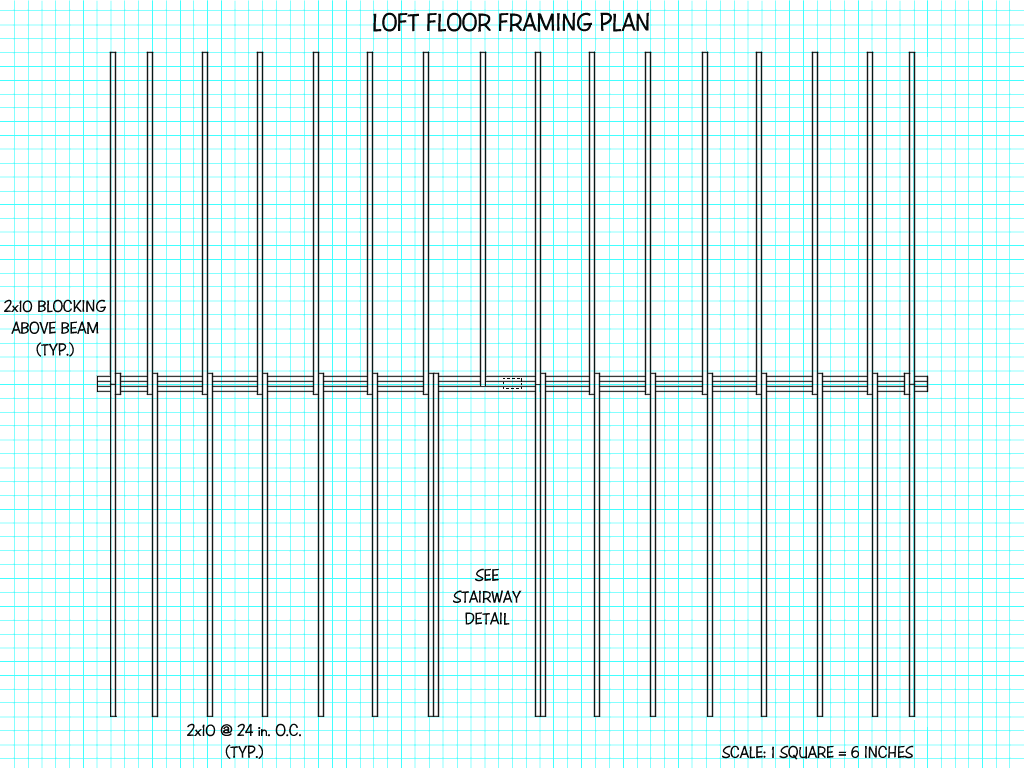

Loft Floor Framing Plan |
|---|
 |
|

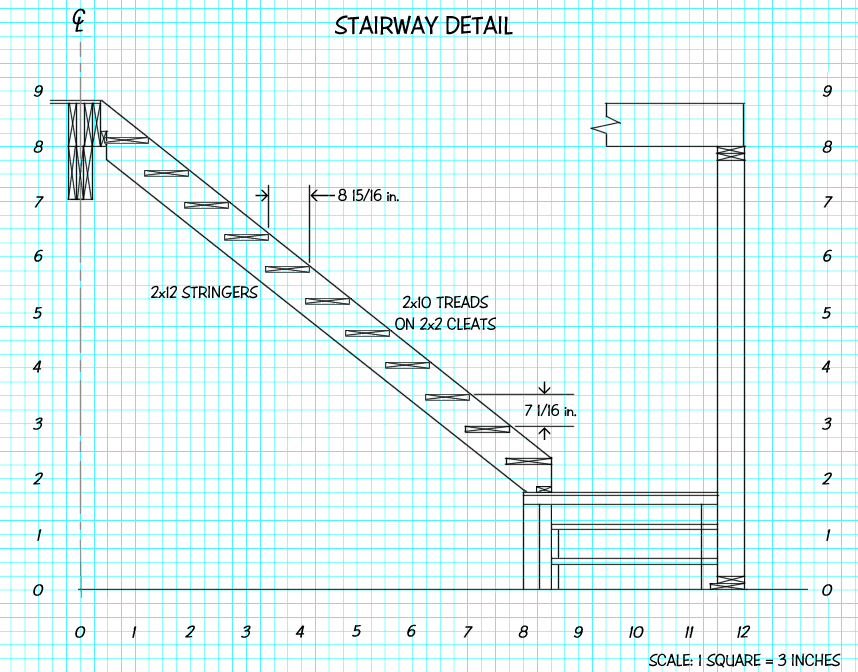

Sketch of Workshop Stairs |
|---|
Building a Dream Home in Maui
