The Initial Planning of the Maui House
by Eric Newman

We looked at many houses before we entertained the thought of building a custom home from scratch.  It was so frustrating to see a nice house that was oriented incorrectly as to not take advantage of the views or breezes.  We literally saw beautiful expensive custom homes where the predominant windows looked at the neighbor's house, and the ocean view was largely ignored.  Sure, the footprint of the house fit neatly on the lot, but wouldn't it have been better to design the right floor plan to take advantage of the views?  We also saw house plans that were obviously taken out of a book and were not appropriate for the tropical environment.

I know I'm going to lose a lot of you here, but this is so critical.  Just as important as finding the perfect property is to design and properly orient the perfect house to take advantage of the surroundings.  You need to identify all the corners and lot lines, as well as any easements.  A surveyor can help.  You need to walk all the buildable areas of the lot and take inventory of the best features.  If there are ocean or mountain views, buy a good compass that reads in true north, and note their directions.  Where does the sun rise and set through the seasons?  From which direction do the trade winds blow?  How windy does it get?  What direction do the storms come from?  Are there any ugly areas that you can't fix or mask?  Does your area get Vog (volcanic gases such as sulfur dioxide from the Big Island's active Kilauea volcano — On Maui during Kona winds, Kihei, Wailea, and Makena get Vog, as well as many areas on The Big Island — Some people are very sensitive and get headaches, dizziness, sore throat, and respiratory problems)?  Is your area down wind of cane fires from sugar cane field burning (causes heavy ash and respiratory problems — On Maui, Kihei gets heavy ash)?  Do neighbors have animals or bad smells you need to avoid?  Will you have solar water heating or PV solar and need a clear path to the south?  Do you want to hide any solar panels or the garage so they can't be seen from the street?  If your neighborhood has CC&Rs, and their unusual restrictions?  (Probably)  Are there minimum setbacks or easements?  (There were for us)  Are there minimum square footage requirements?  (There were for us)  Are there requirements for roof pitch, roof material, window material and tinting, or landscape lighting requirements?  (There were for us)  What's the temperature range throughout the year?  Will you need heating and air conditioning?  What is the annual rainfall and when is it the heaviest?  Do you want to build on a concrete slab (acceptable for dry areas), or post-and-pier construction (better for wetter windward areas and allows air circulation under house)?  What is the topography of the lot, what are the slopes on the lot, and are there local grading and height restrictions?  (There were for us)  Hawaiian houses on large lots usually have guest houses called Ohanas.  Consider building one for guests or for renting, and reserve space for it.

Try to rent a guest house or a room in the neighborhood (we did) and meet as many neighbors as possible.  Visit the property as many times as you can during each season and during different weather patterns.

Get an idea of the style and feeling of the house you want.  Look in the surrounding neighborhoods and buy some books.  We bought at least 30 or 40 books.  We also got several ideas from houses on neighboring islands.

Make a detailed list of what you want.  Ours was three typed pages.  Be creative, but realize that many items will be cut later.

If you have the ability, try making some floor plans.  Here's where those house plan books can be handy, or the floor plans from model homes that you liked.  There are many inexpensive and powerful home design software programs available.  These programs can also create a 3D rendering of the house so you can see it from all angles outside, and even virtually walk through the interior.  Otherwise, you can just sketch the floor plan on paper, but try your best to visualize the finished result.  If you start the floor plan yourself, you'll see it's a lot harder than you thought.  Our lot had a wide 165 degree ocean view so I picked the prime best ocean view for the great room, the best night time view of the harbor and lights of Haleakala for the master bedroom, a second-best ocean view for the office and guest room.  Views were important to us, and every room had a great ocean view.  I designed each room, then came up with a structure to hold it all together.  Once you have a basic floor plan, you're half way done.

If you aren't taking your design from a book of plans, you'll need an architect or a designer.  For those without deep pockets, consider using a qualified designer and then get the plans stamped by a licensed architect.  If you have a builder in mind, have them participate in the design process so you have a cost effective and buildable design.  Some architects come up with beautiful creative designs that can't be built.

While you're designing this house, be keenly aware of how it fits on the lot, and what grading and retaining walls are required.  We wanted a Hawaiian style house with a Dicky two-pitch roof, tall open ceilings, huge five-foot roof overhangs, board and batten siding, a post and pier foundation to allow airflow under the house, and a good quality roof with copper gutters.  I read a great book on organic architecture (below) and wanted the house to complement and blend in with the surroundings.

Again, this approach may not be your style, but if you are planning on delegating the design to an architect or a designer, at least be aware of all these considerations and make a list of as many preferences as you can.  Many critical issues can be easily dealt with in the design phase at no cost, and are impossible to fix once the house is built.

Below you'll find a small portion of the pictures, videos, and data from the planning for the house:


Brunton Pocket Transit Lightweight Waterproof Aluminum Body with 0-360 degree Azimuth The Compass I Used
(Reads True North and
Measures Elevation Angles)
Brunton Pocket Transit
with 0-360 degree Azimuth
Luminescent Liquid Damped Scouting Compass with Adjustable Declination Good Inexpensive Compass
(Reads True North)
Luminescent Liquid Damped
Compass with Adjustable Declination

Article I wrote:
Determining your Position
with a Pocket Compass
with a Declination Ring
Solid Brass 2-inch Open Faced Pocket Compass Solid Brass 2-inch
Open Faced Pocket Compass

Article I wrote:
Determining your Position
with a Pocket Compass
Open Face Compass with Beveled Glass Open Face Compass
with Beveled Glass

Article I wrote:
Determining your Position
with a Dial Pocket Compass

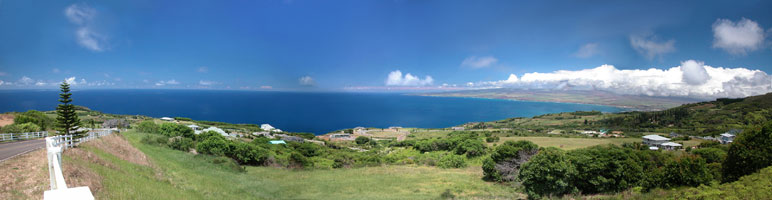

Panoramic View of Property Before Construction

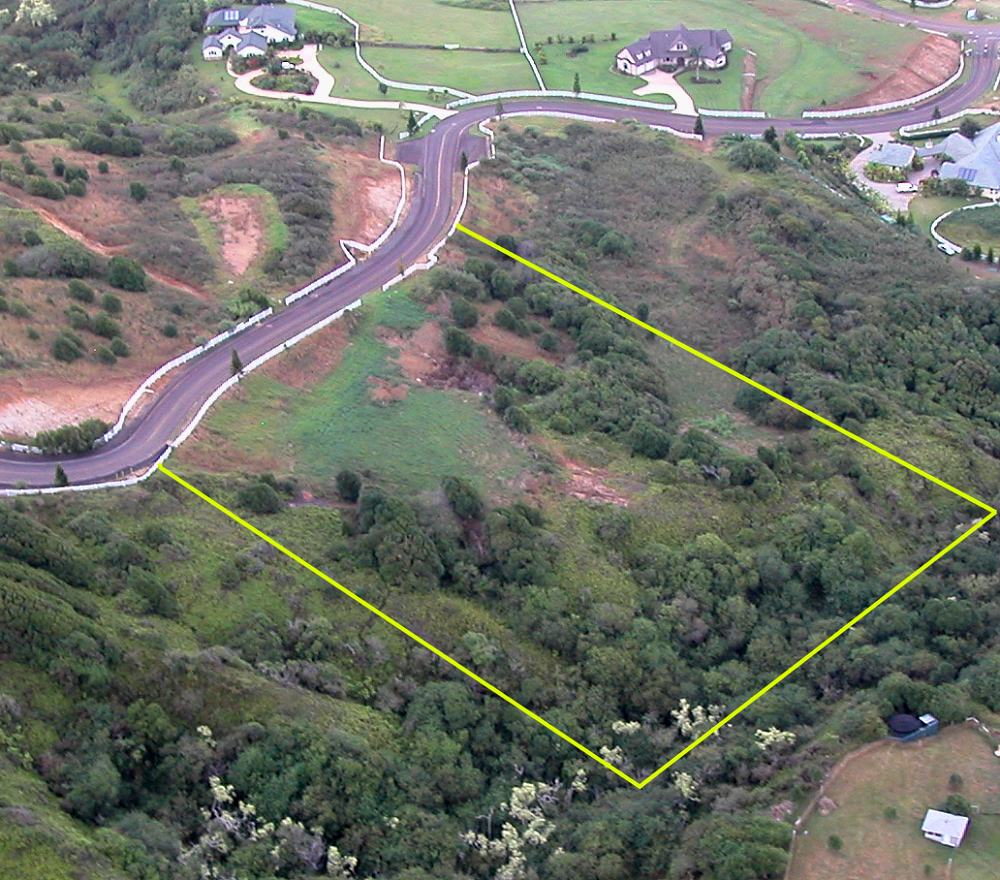

Aerial Photographs Prior to Construction

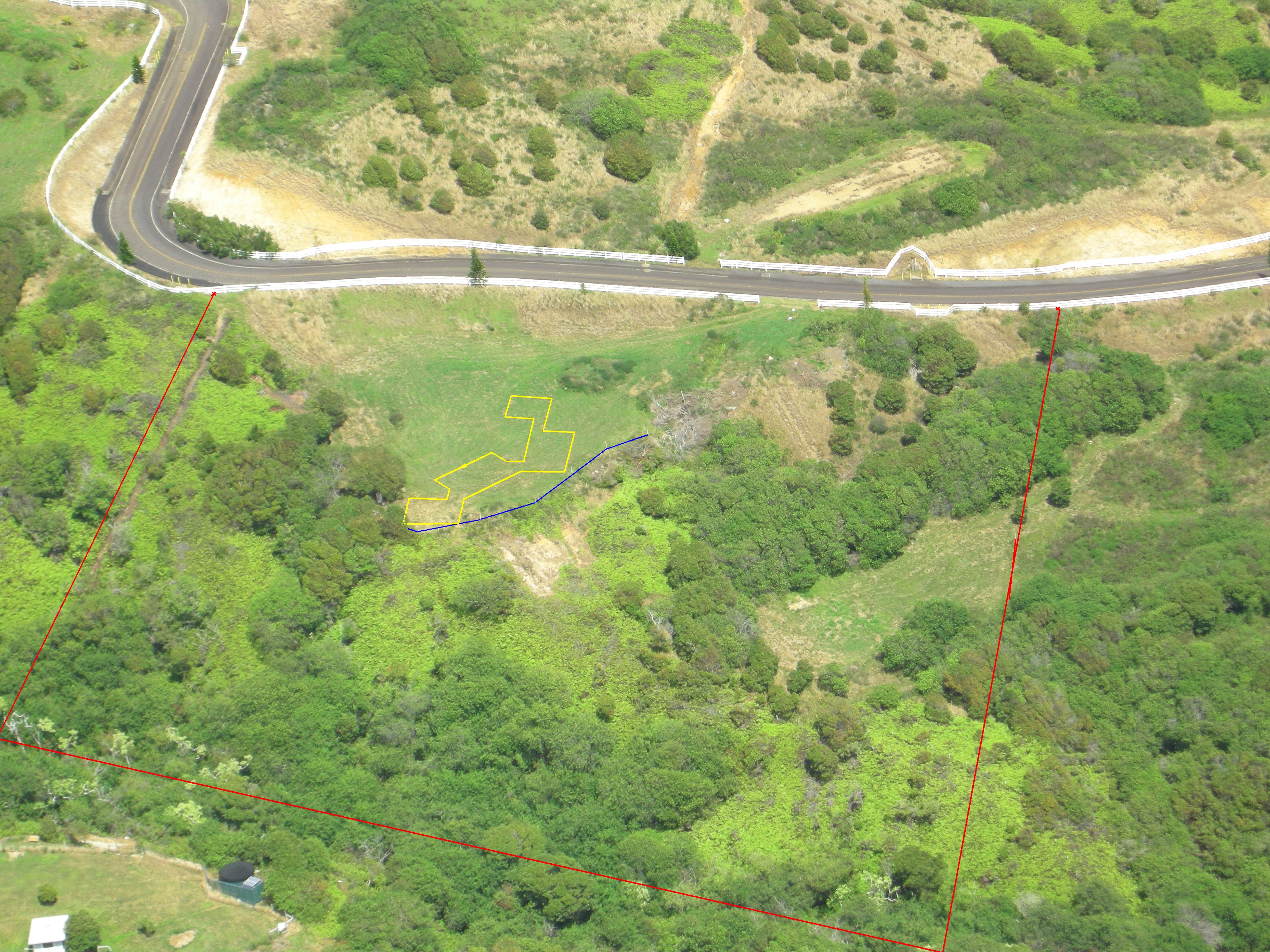

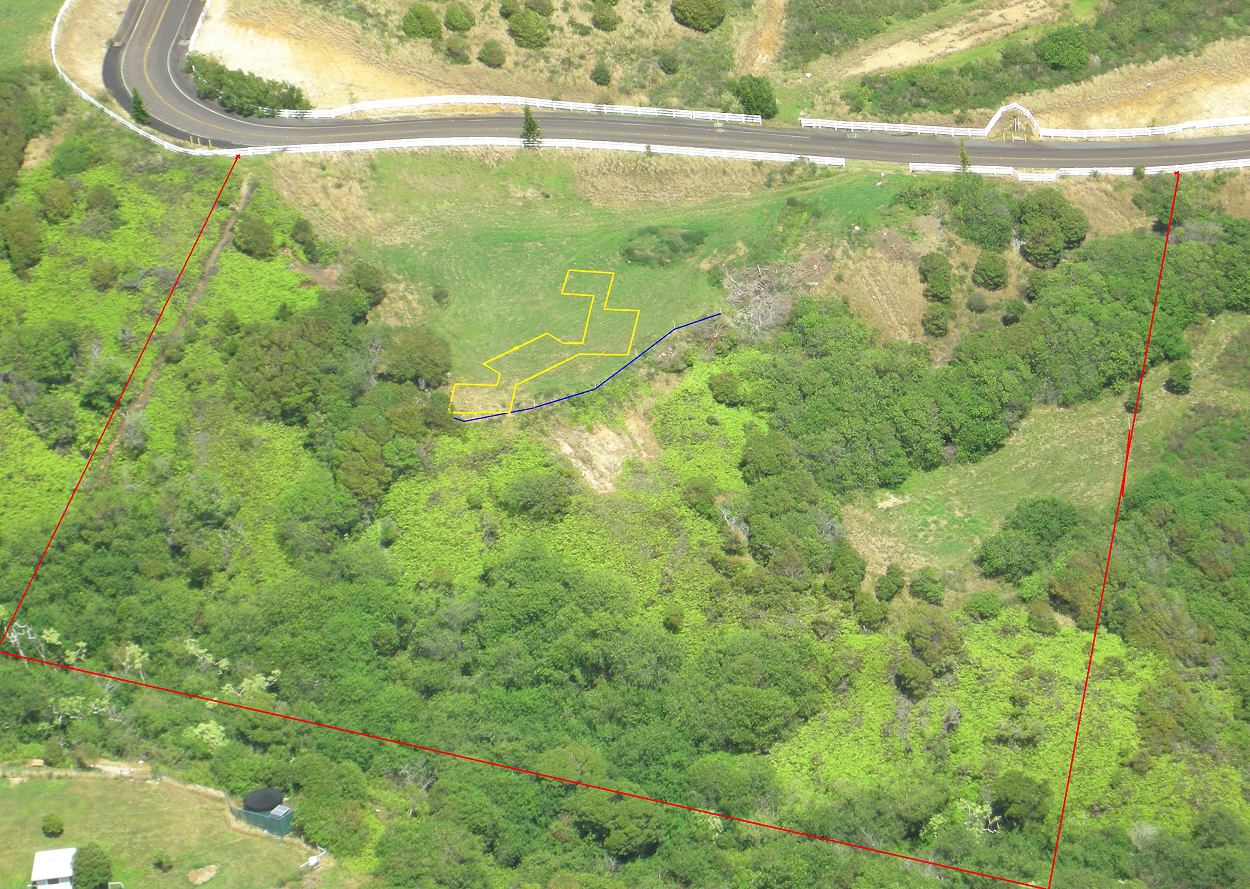

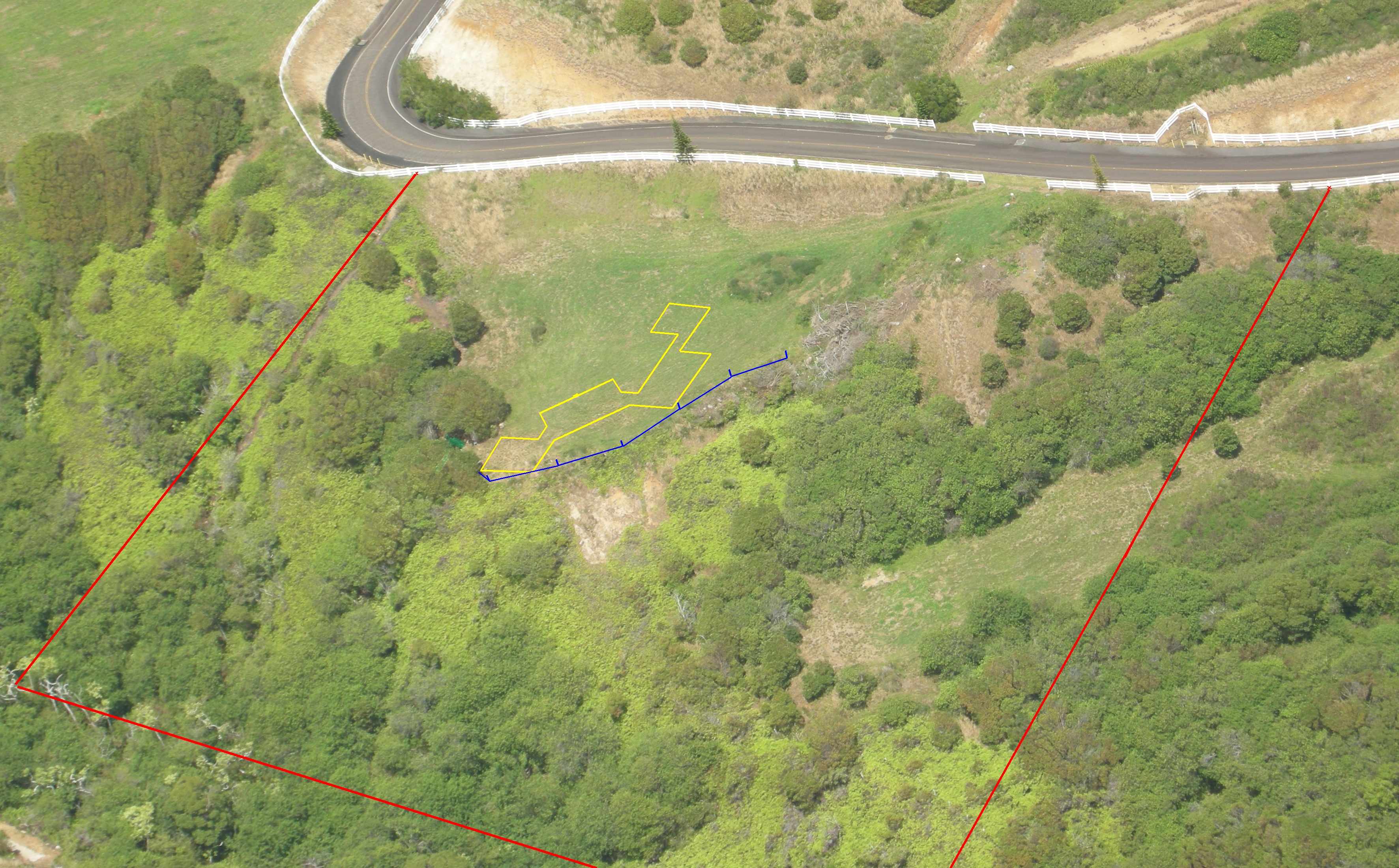

Aerial View of Property with Footprint of House, Property Lines, and Edge of Pad Enhanced
Aerial View of Property
with Footprint of House,
Property Lines, and
Edge of Pad Enhanced

Full Resolution Image

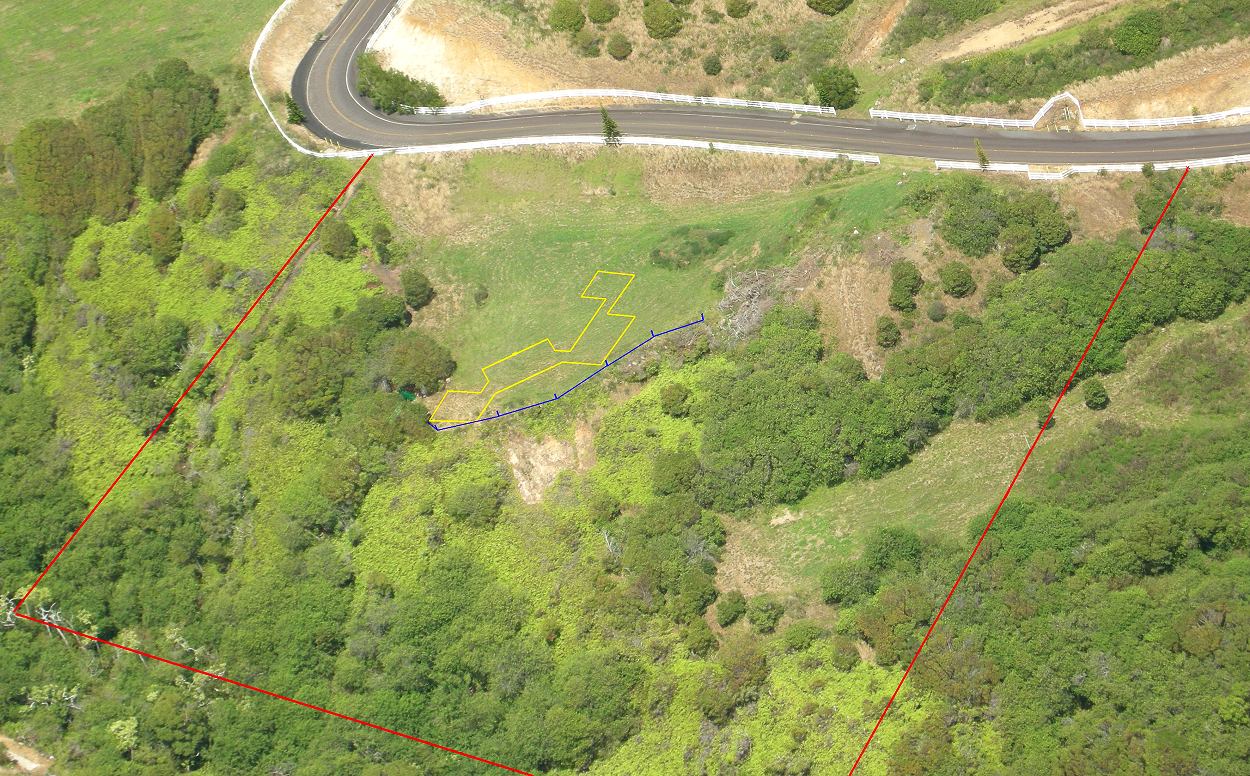

Aerial View of Property with Footprint of House, Property Lines, and Edge of Pad Enhanced
Aerial View of Property
with Footprint of House,
Property Lines, and
Edge of Pad Enhanced

Full Resolution Image

Click Thumbnail for Larger Image:

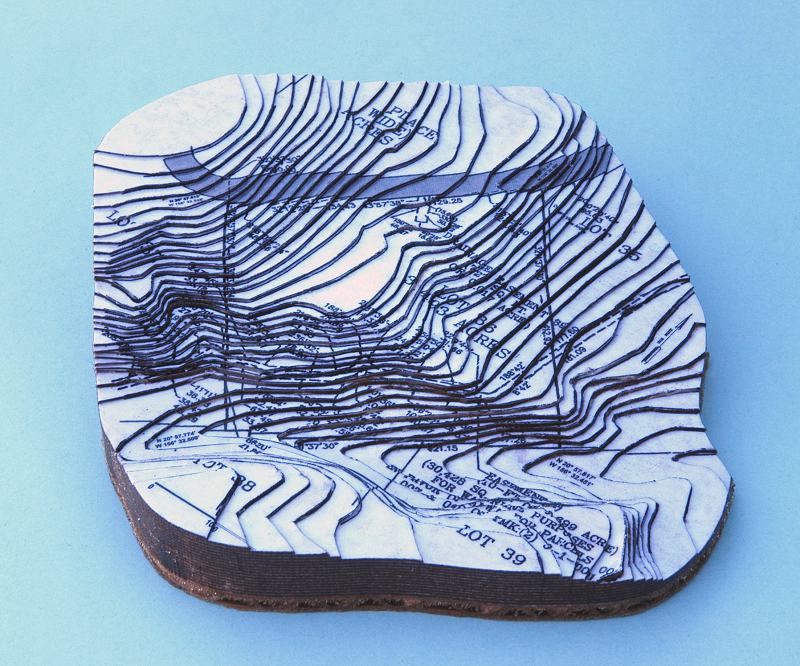

Topographic Model
Full Resolution Image

Topographic Model
Full Resolution Image

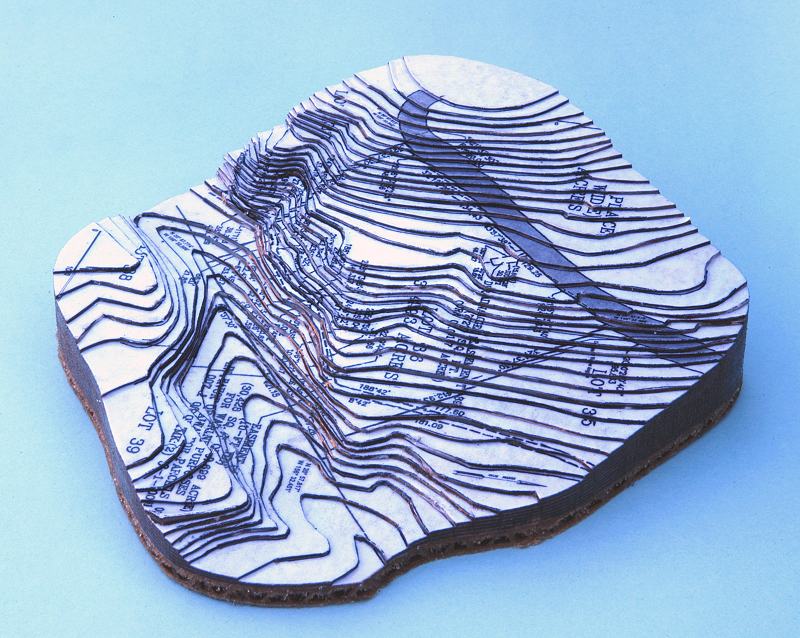

Topographic Model.  Each Layer is Five Feet.  Click photograph for larger image.

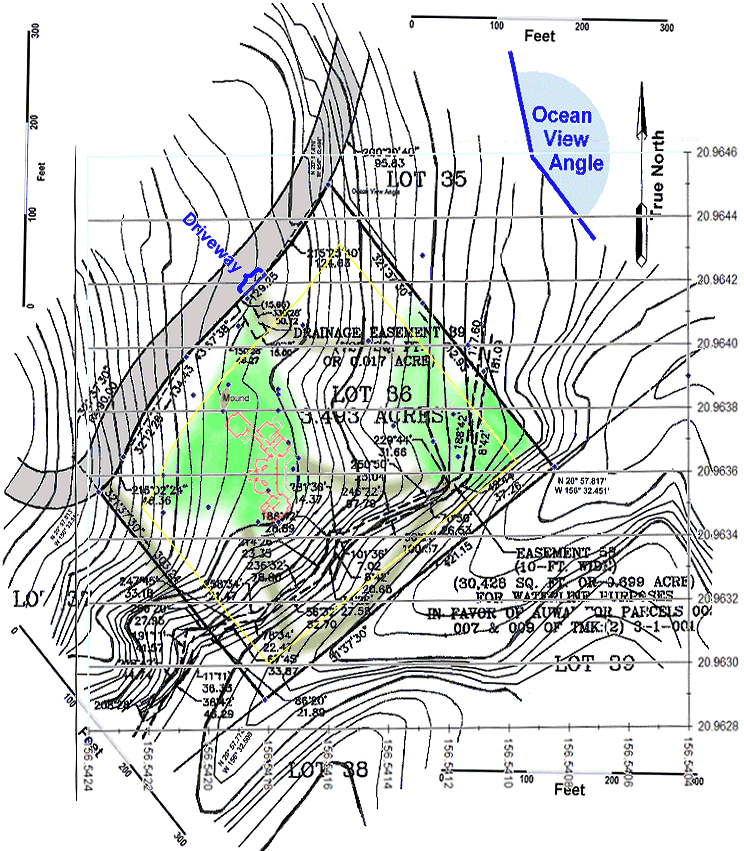

Topographic Map with House - Each Line is Five Feet
Topographic Map with House
Each Line is Five Feet
Water meter and electricity currently on lot,
catchment water tanks for agricultural use.

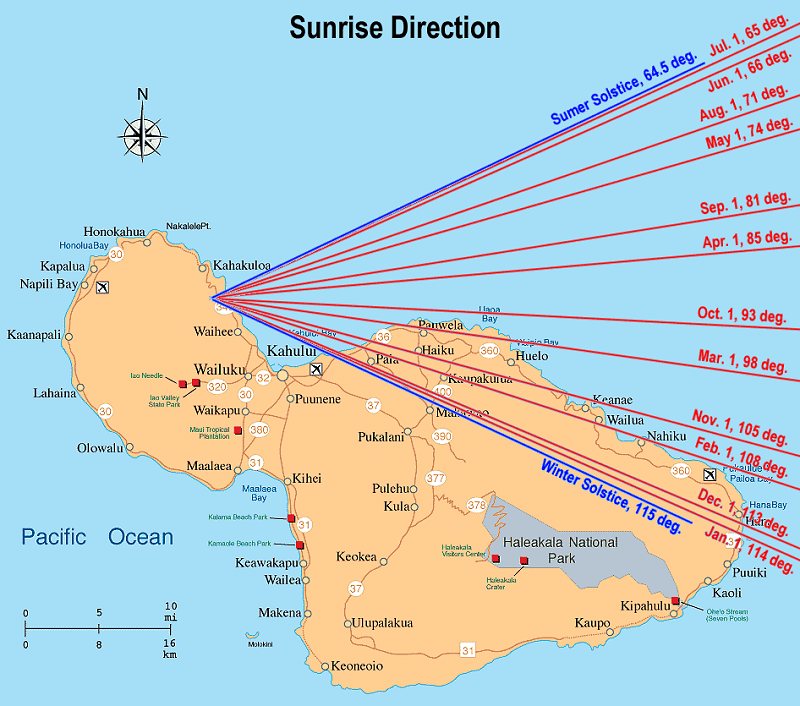

Sunrise Direction
Sunrise Direction

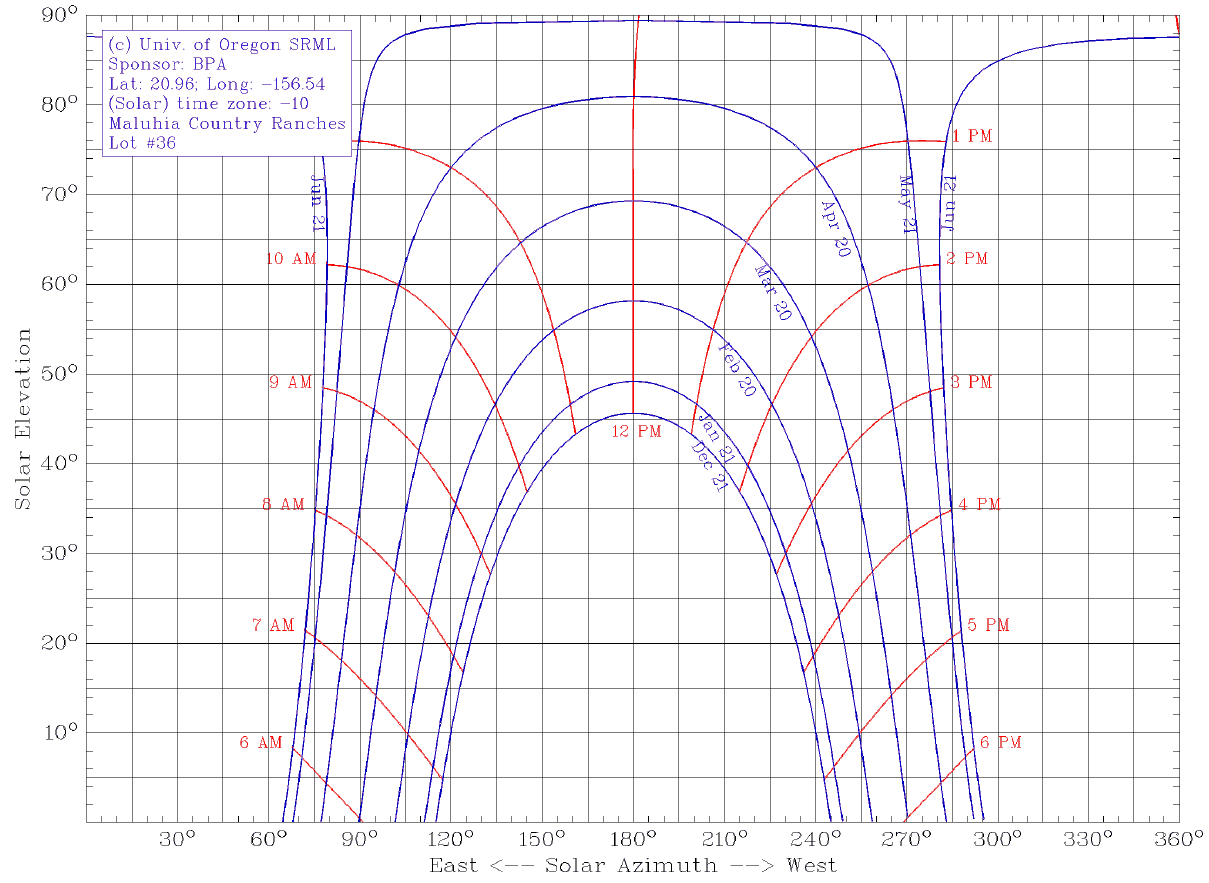

Sun Angle January - June
Sun Angle January - June
Sun Angle July - December
Sun Angle July - December
Sun Angles
Click either thumbnail for full size chart

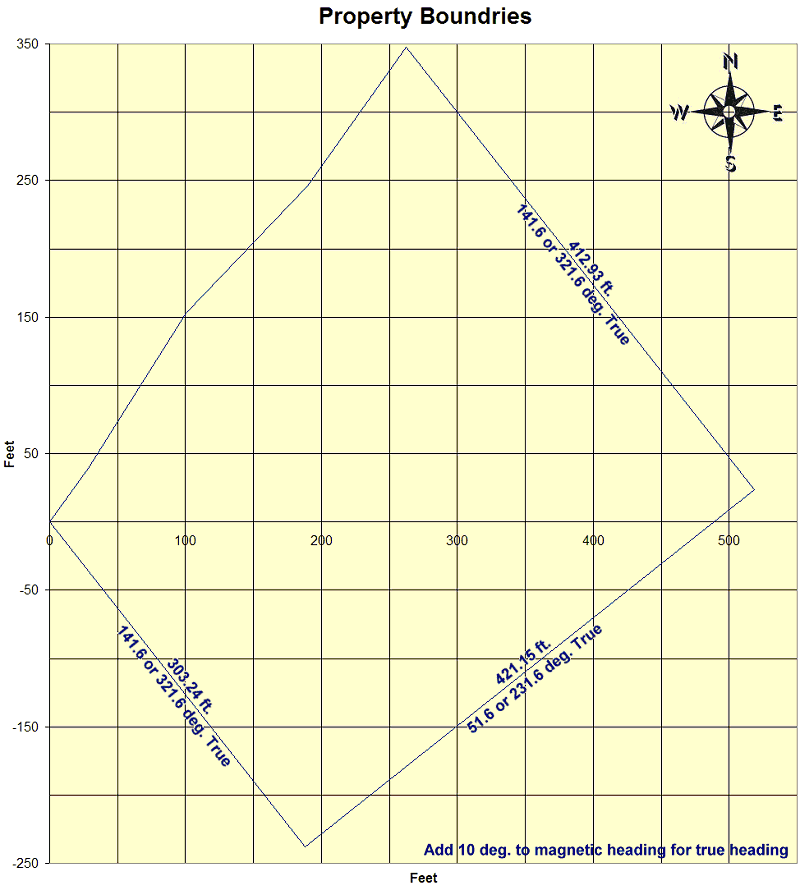

Property Boundaries
Property Boundaries

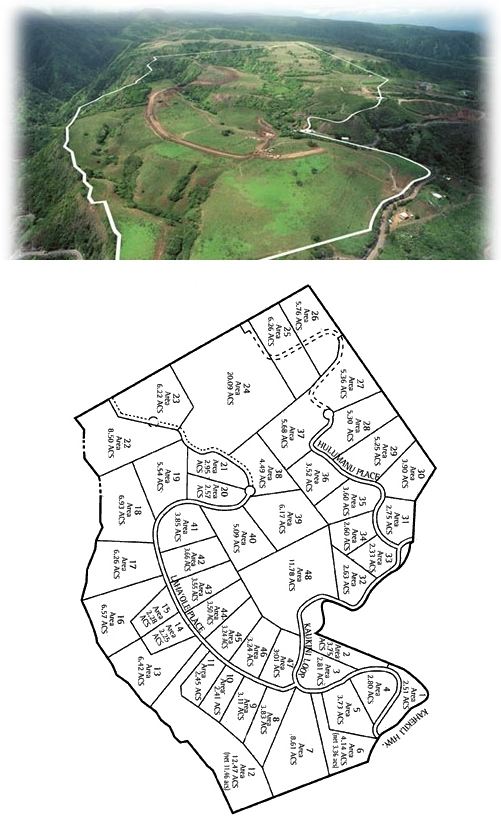

Lot Map
Lot Map

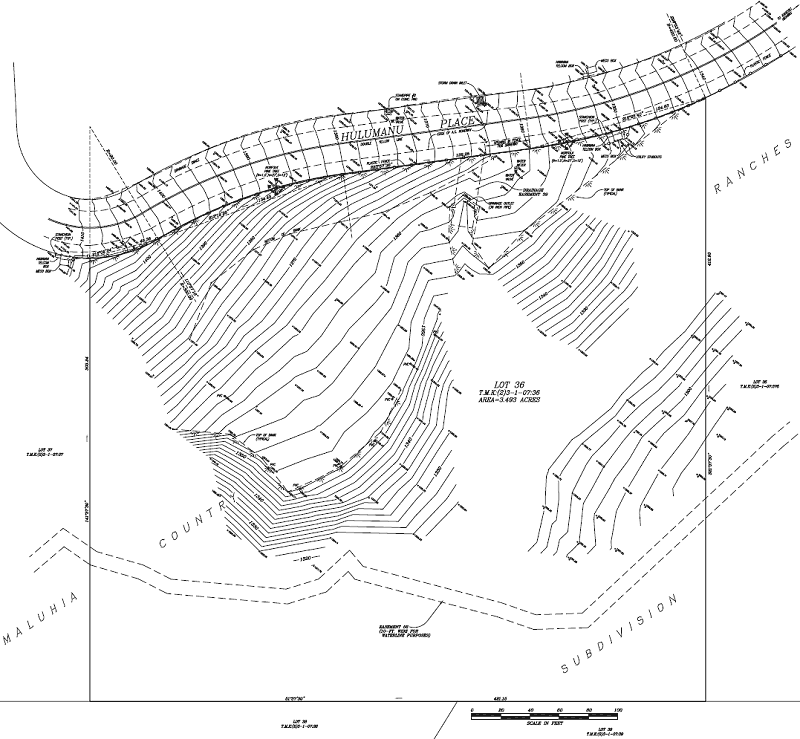

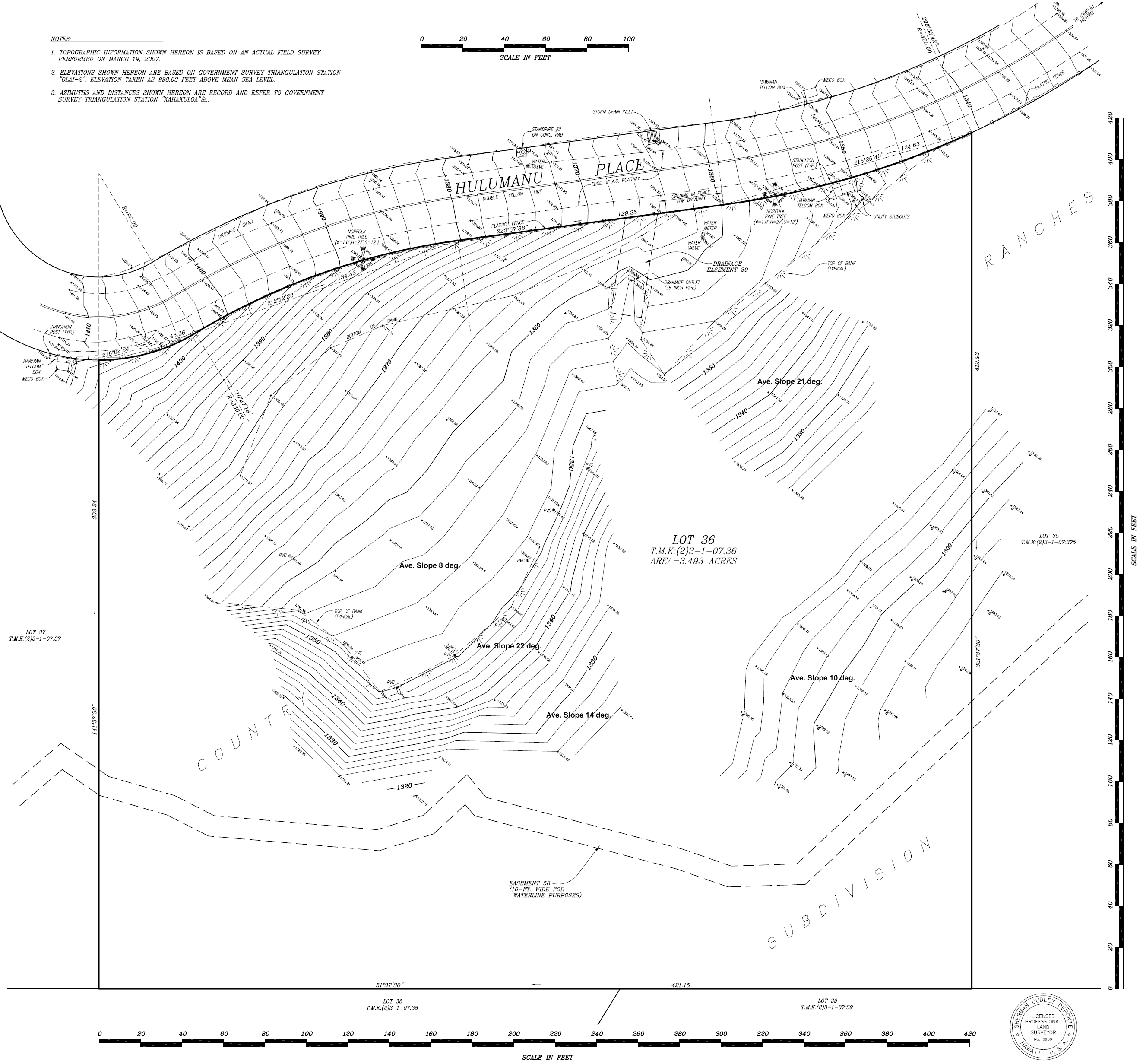

New Topographic Map.  Each line is two feet.
New Topographic Map. Each line is two feet.
Larger Image with Scales

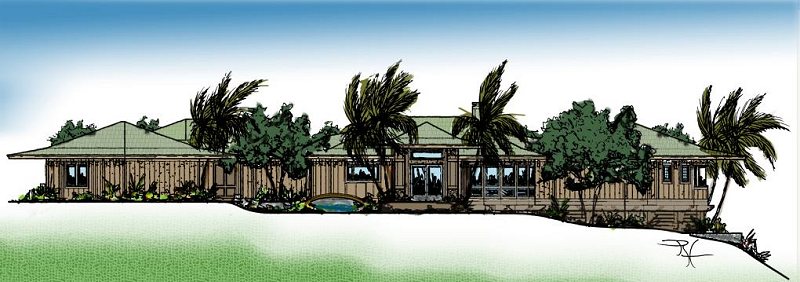

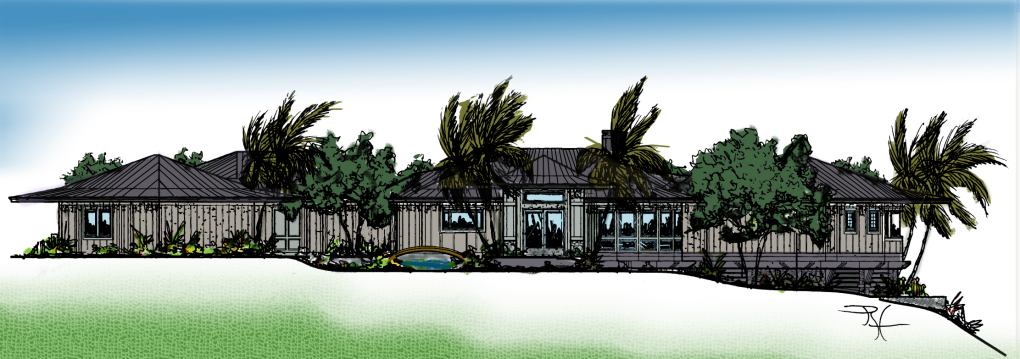

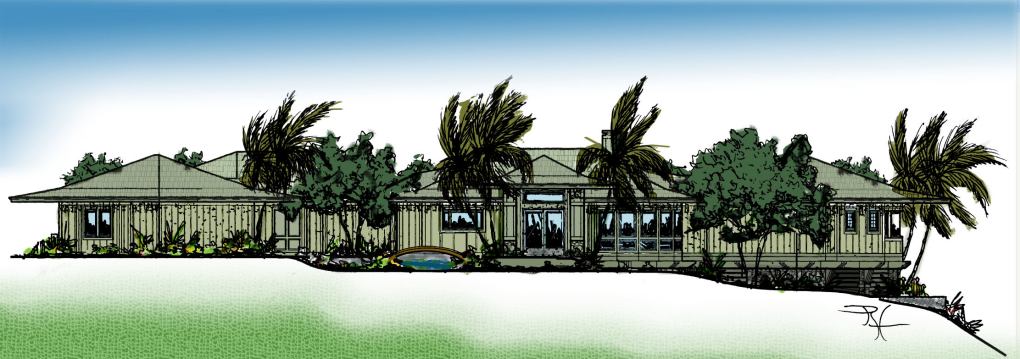

House Design Front Elevation
House Design Front Elevation
Green Paint   Metal Roof

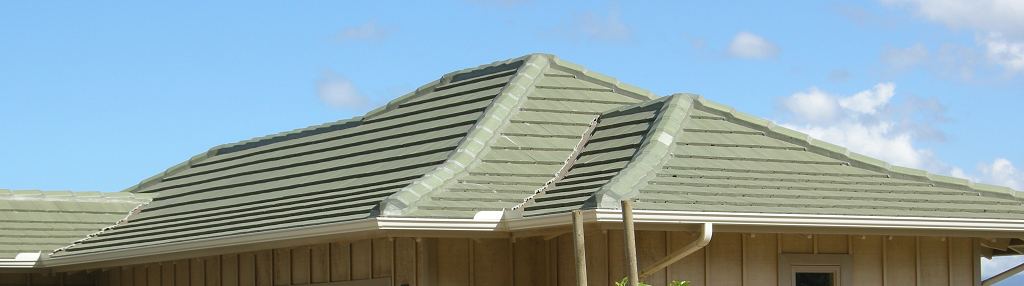

Monier Sea Green Saxony Shake Tile Roof Selected

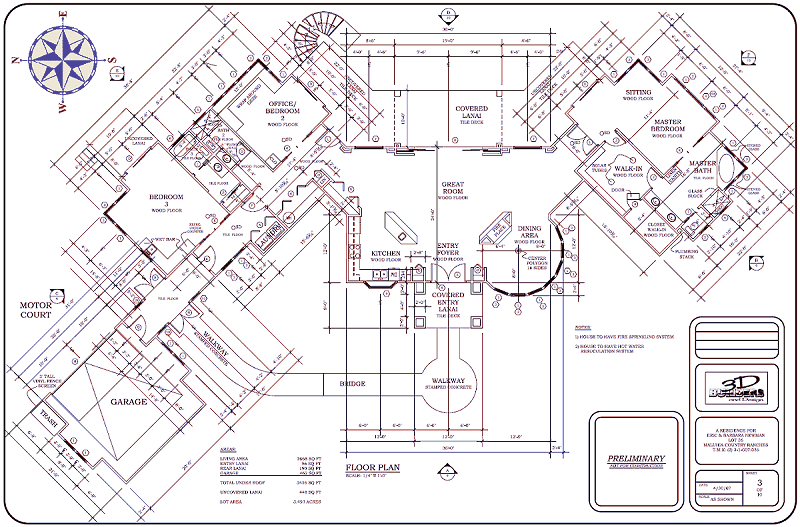

House Floor Plan
House Floor Plan

Current House Floor Plan
Current House Floor Plan
Larger Image

House Site Plan
House Site Plan

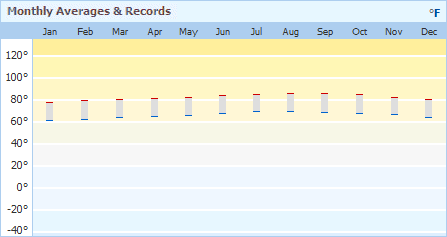

Monthly Average Temperatures
Monthly Average Temperatures

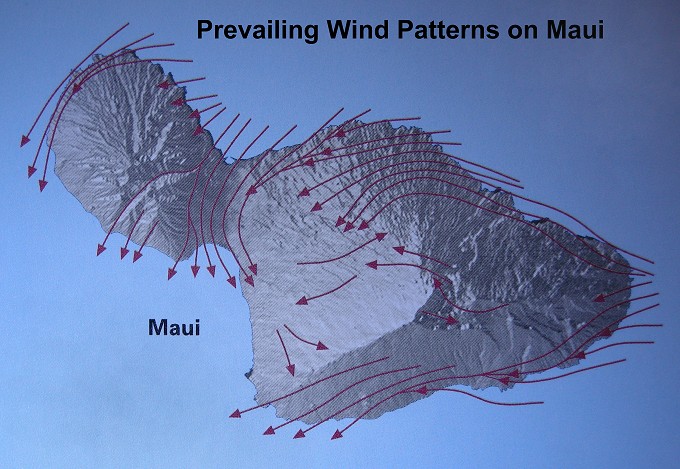

Maui Wind Patterns
Maui Wind Patterns

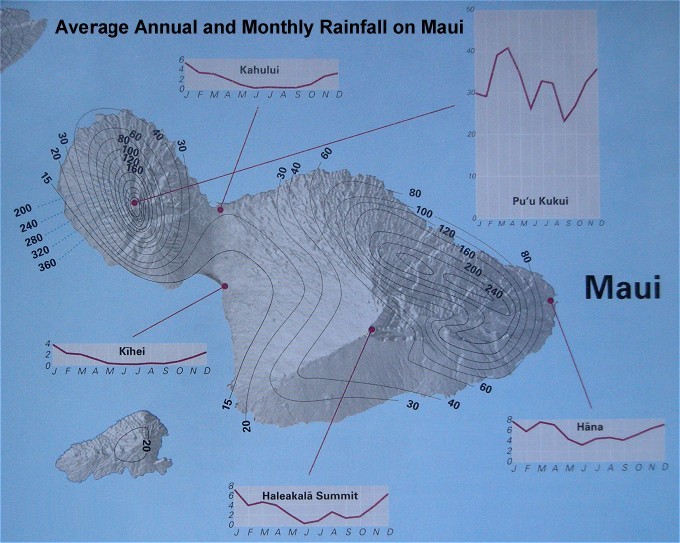

Maui Rain Map
Maui Rain Map

Average Rainfall (inches):
January6.2
February4.4
March4.8
April4.4
May2.1
June0.9
July1.5
August1.7
September1.4
October3.0
November4.4
December5.2
Yearly Total40.0

Hawaii National Weather Service Enhanced Radar Mosaic Loop

Click Thumbnail for Larger Image
Early Aerial View of Property Taken October, 2006
Early Aerial View of Property
Late October Sunrise over Paia
Late October Sunrise over Paia
Upcountry, Paia, Airport, and Harbor at Night
Upcountry and Harbor at Night
Lots of Work To Do
Lots of Work To Do

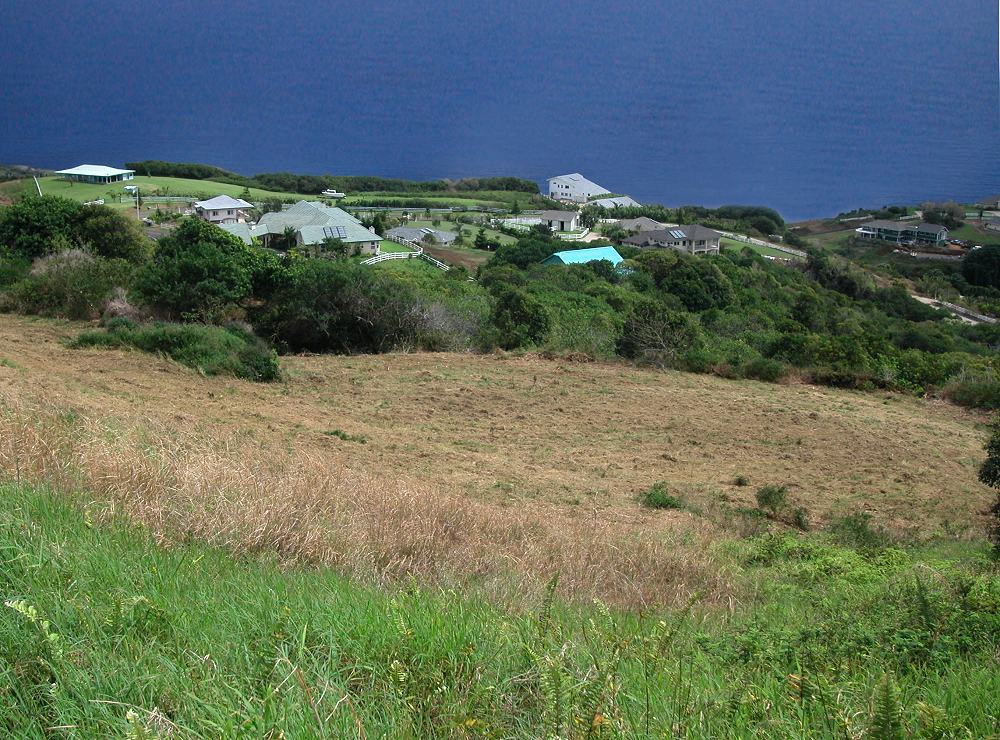

Lot Cleared for House
Lot Cleared for House

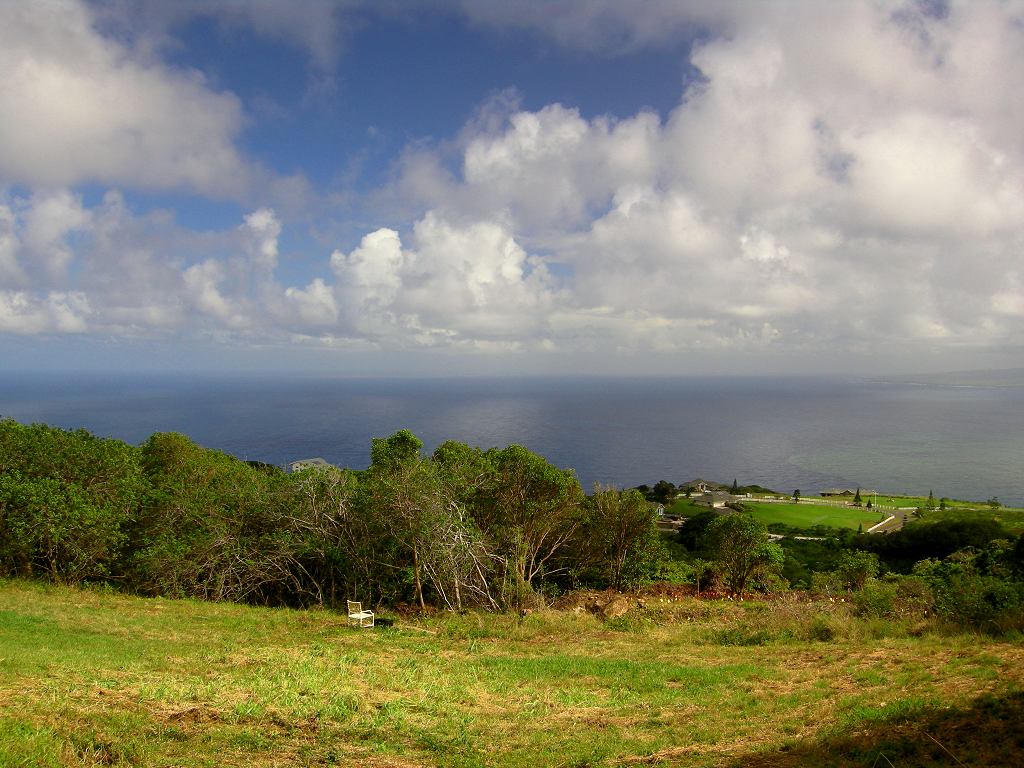

Second Clearing for Future Ohana
Lower Lot for Future Ohana

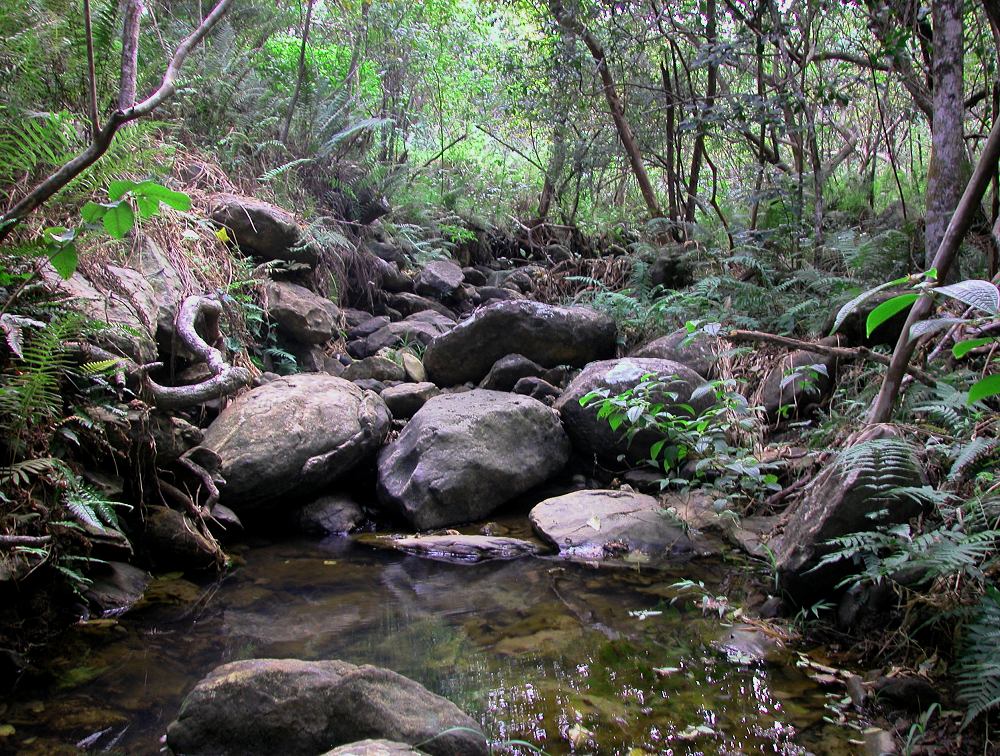

Stream Near Southern Corner of Property
Stream at Southern Corner

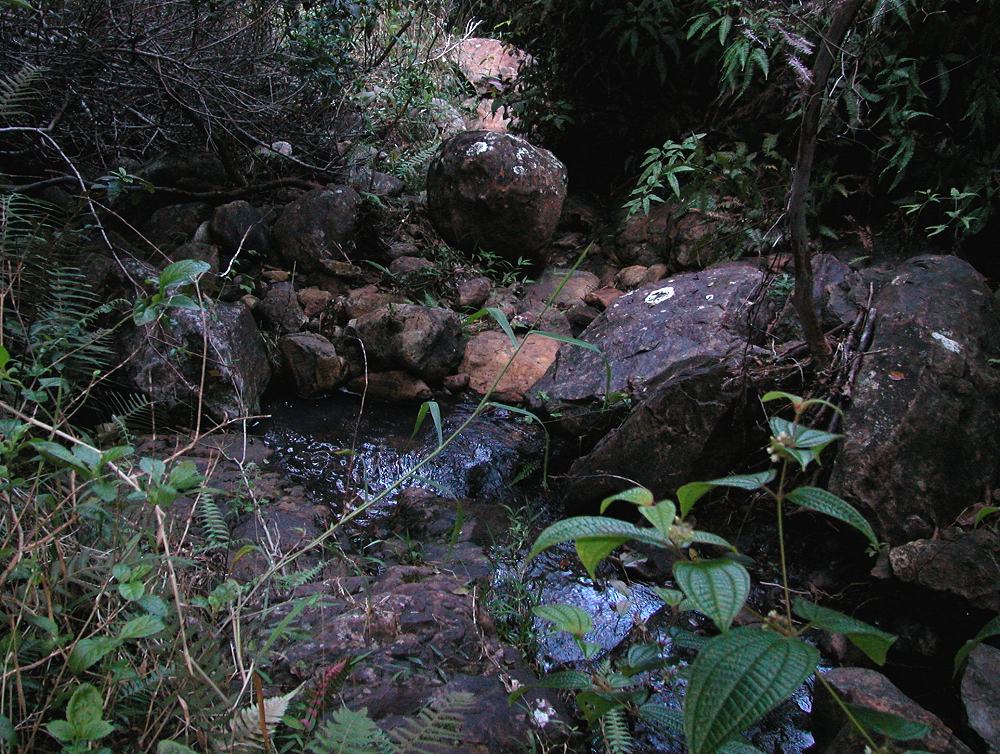

Stream
Stream

Natural Stream on Southeast Edge of Property
Natural Stream on Southeast
Edge of Property

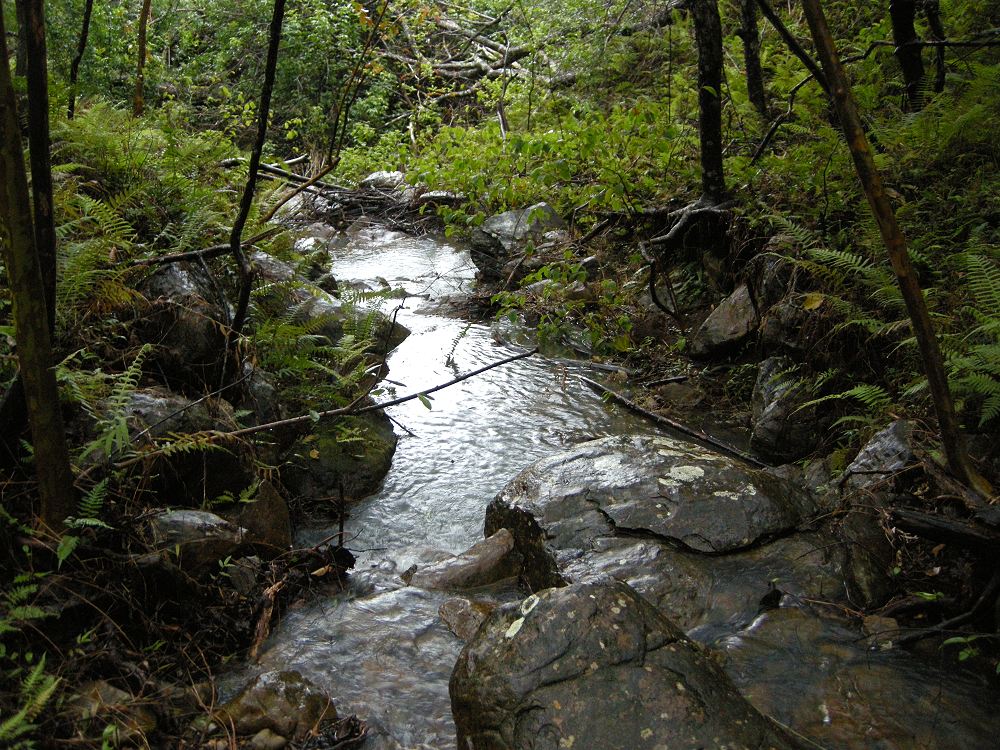

Stream on Lower Edge of Property, April 21, 2009
Stream on Lower Edge
of Property
Stream on Lower Edge of Property, April 22, 2009
Stream on Lower Edge
of Property
Waterfall near East Corner of Property, April 22, 2009
Waterfall near East
Corner of Property

Dusk at Property
Dusk from Road
with Property Below
Sunrise at the Property
Sunrise at
the Property
Early Morning View to North along Road
Early Morning View
to North along Road

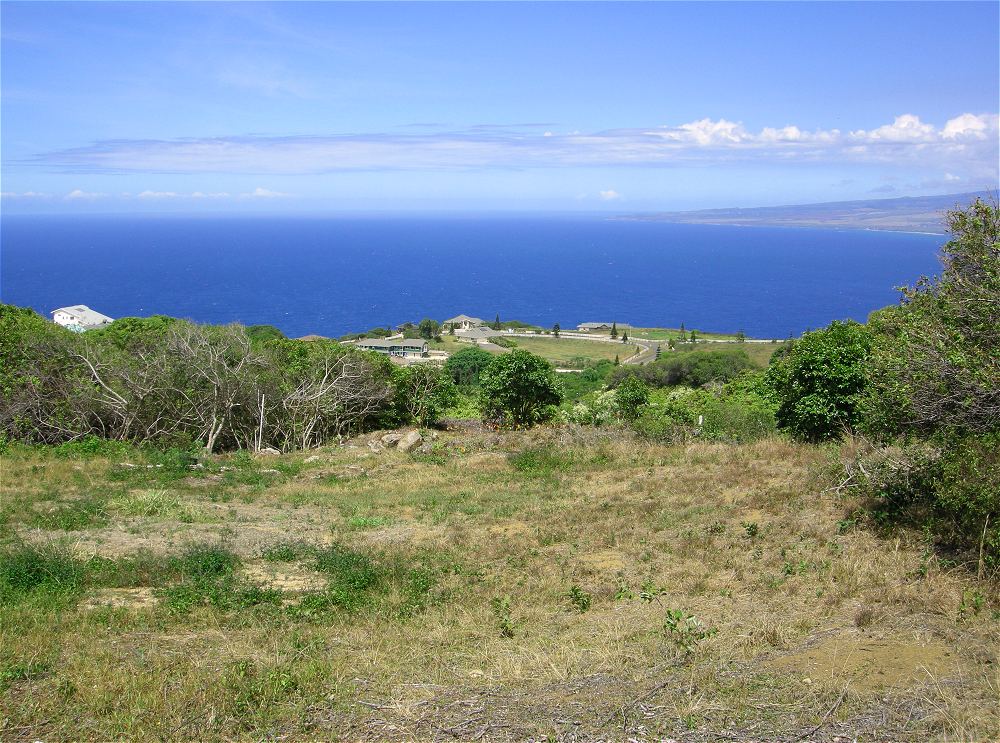

View from Lower Clearing, June, 2008
View from Lower Clearing
June, 2008

Cruise Ship and Hawaii Superferry at Dusk
Cruise Ship and
Hawaii Superferry at Dusk
Full Moon Over Haleakala. July 5, 2009
Full Moon
Over Haleakala
Moonrise over Haleakala, February 7, 2010
Moonrise over Haleakala
February 7, 2010
Thunderstorm and Lightning Over Haleakala, February 23, 2010
Thunderstorm and Lightning
Over Haleakala

Moon Through Clouds, August 29, 2012
Moon Through Clouds
Moonrise Panorama, August 31, 2012
Moonrise Panorama
Moonrise Through Clouds, September 2, 2012
Moonrise Through Clouds

Click Thumbnail for Larger Image

Click Thumbnail to Watch Video
Need a DivX Player?

Video of Sunrise
Sunrise
Video at Dusk
Dusk
Video of House Staking (1 of 2)
House Staking (1 of 2)
Video of House Staking (2 of 2)
House Staking (2 of 2)

Stream on Back Property Line After Rain.  April 21, 2009
Stream on Back Property Line
Waterfall Near East Corner of Property.  April 22, 2009
Waterfall at Corner of Property
Stream on Back Property Line a Few Days Later.  April 24, 2009
Stream a Few Days Later
Need a
DivX Player?


Click Thumbnail
to Watch Video
